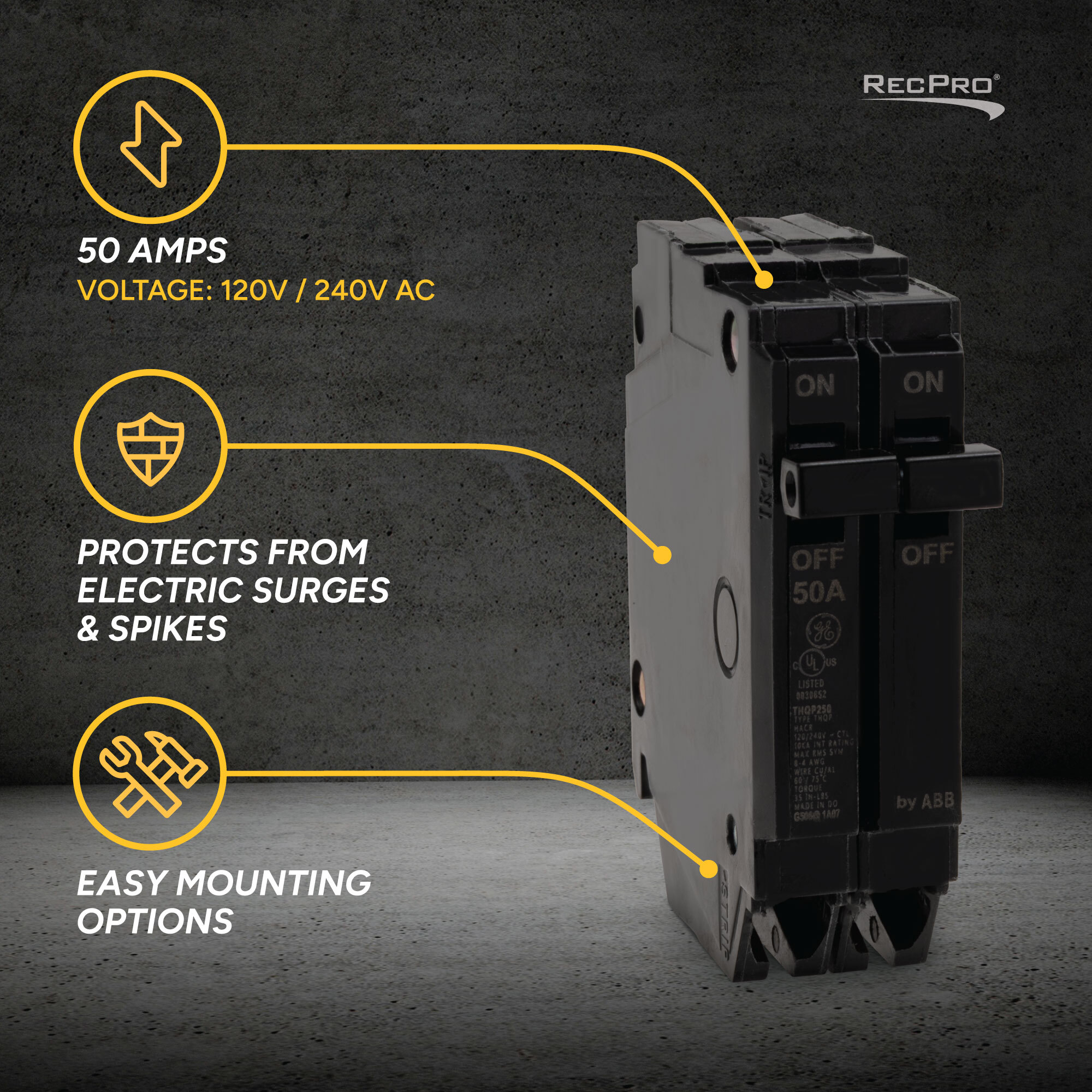

RV Circuit Breaker 50 Amp Double Breaker General Electric THQP250

Protect Your RV With A 50 Amp RV Circuit Breaker

You might not think about them too much, but circuit breakers are a vital part of your RV electrical system. Not only do RV circuit breakers allow your electrical system to function at all, they also provide your system and appliances with protection against power surges and short circuits. RV circuit breakers limit the amps allowed to flow through the electrical system. When an appliance draws more amps than what the circuit breaker is rated for, the circuit breaker “breaks” the circuit, cutting off power before things get dangerous.

This is a THQP type circuit breaker that offers a thinner, space-saving design compared to standard circuit breakers, with dimensions measuring 3 ⅜” H x 1” W x 2 ½” D. This single-phase, double pole RV circuit breaker is rated for 50 amps and can be surface mounted or mounted on a standard DIN rail. 14 AWG to 8 AWG size copper or aluminum wires can be connected to the circuit breaker by the lug screw terminal, while the RV circuit breaker can be turned on or off via the toggle switch. This RV circuit breaker offers an AIR rating (Amperes Interrupting Rating) of 10kA at 120V / 240V AC, and is suitable for HACR (Heating, Air Conditioning, and Refrigeration) applications.

To ensure a safe and enjoyable RV experience, a functional electrical system is essential. Order your 50 amp RV circuit breaker from our website today to guarantee your RV's electrical system is safe and operating smoothly. For additional support, please chat with our Customer Care Team.
