SeeLevel™
SeeLevel by RecPro Bluetooth Tank Monitor Panel up to 7 Tank Display, Option for 7 Sensors
- SKU:
- RP-709-BTP7-A
FREE SHIPPING
100% GUARANTEE
Description
Keep an Eye on Your Tank Levels with a Tank Monitor Panel Kit
Keeping track of tank levels can feel like a full time job if you have to do it manually. Make your life a little easier with a tank monitoring system and panel. Get set up with a SeeLevel tank monitor and sensors and check your tank levels from anywhere.
This system comes with the display panel, 7 sensors, the wiring pigtail, and screws for panel mounting. The sensors come in 3 sizes, making it easy for you to find the one to fit your tanks. These sensors can also be trimmed or stacked for more or less length as needed. Not that only the same type of sensors can be stacked together, such as AR2 with AR2, etc. This system can monitor battery, fresh, gray, and black water tanks, and LPG tanks.

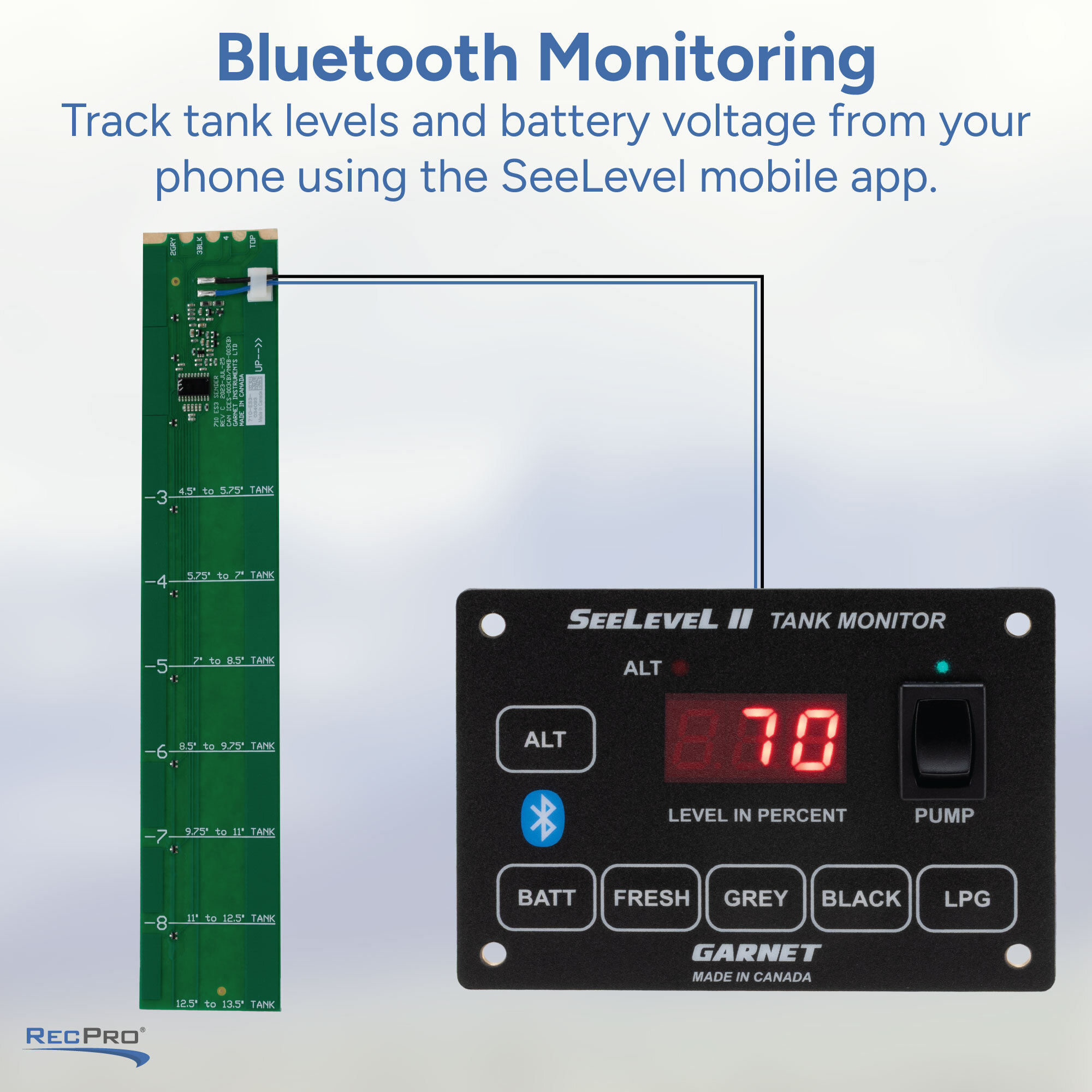

This display is an LED display so it’s clear and easy to read. On top of that, the sensor helps make for accurate readings so you can see exact levels of your tanks with ease. But checking your tanks isn’t just limited to the display panel, this system also has Bluetooth that works in conjunction with SeeLevel’s app so you can check levels anywhere, any time. This panel also comes with a 3-way pump switch for even more convenience.
Don’t miss out on making your life easier. Upgrade your tanks to this SeeLevel monitoring panel and never guess your tank level again. If you’re ready to switch, you can get your panel kit today from our website. If you have questions, you can reach out to our Customer Care Team for assistance.
Details:
- Tank monitoring panel
- Can monitor up to 7 tanks (battery, fresh, gray, black, and LPG)
- Bluetooth connectivity

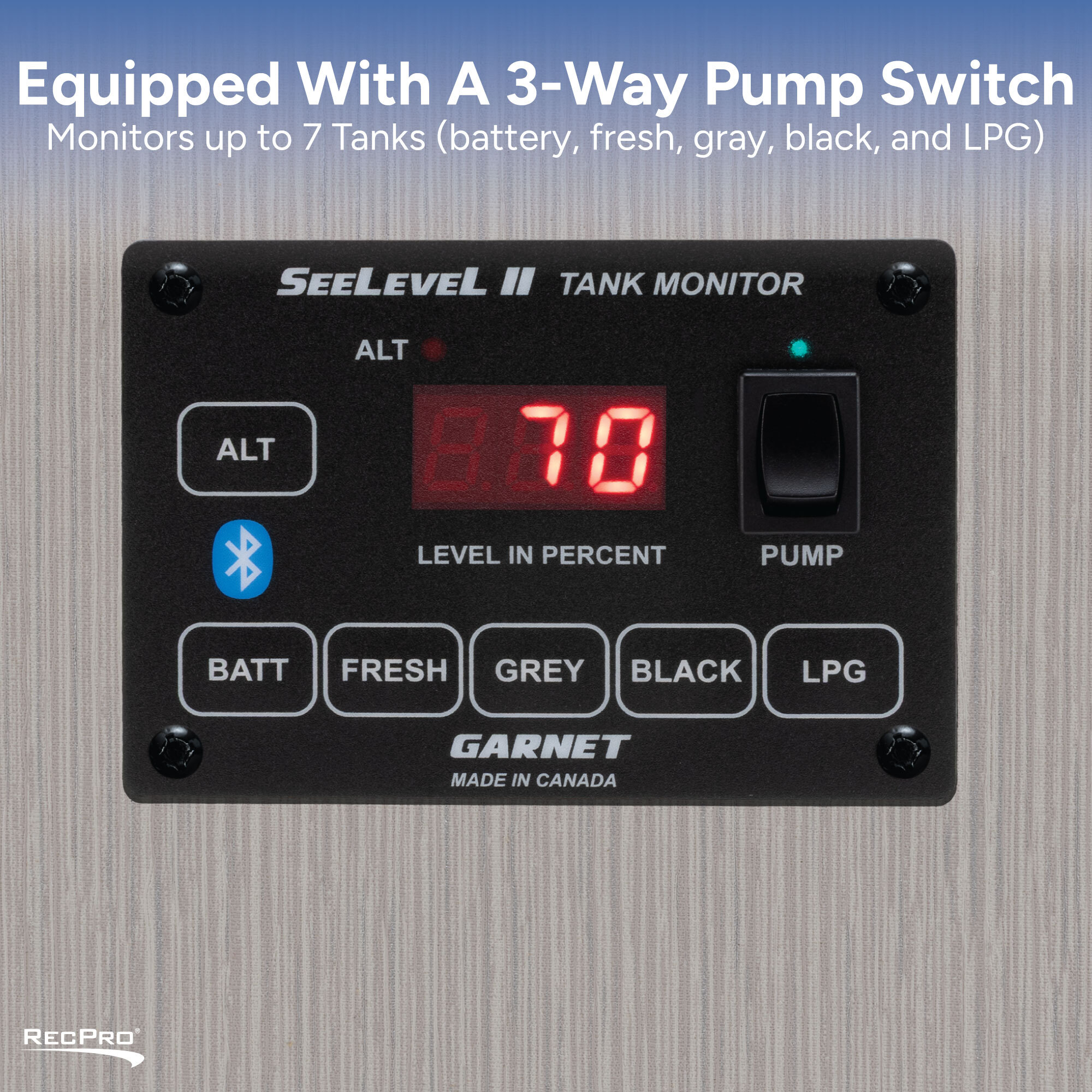

- Equipped with a 3-way pump switch
- Panel screws to the wall
- LED display
- Includes
- Tank Monitor Display Panel
- Pigtail Harness
- 7 Tank Sensors
- 4 Mounting Screws

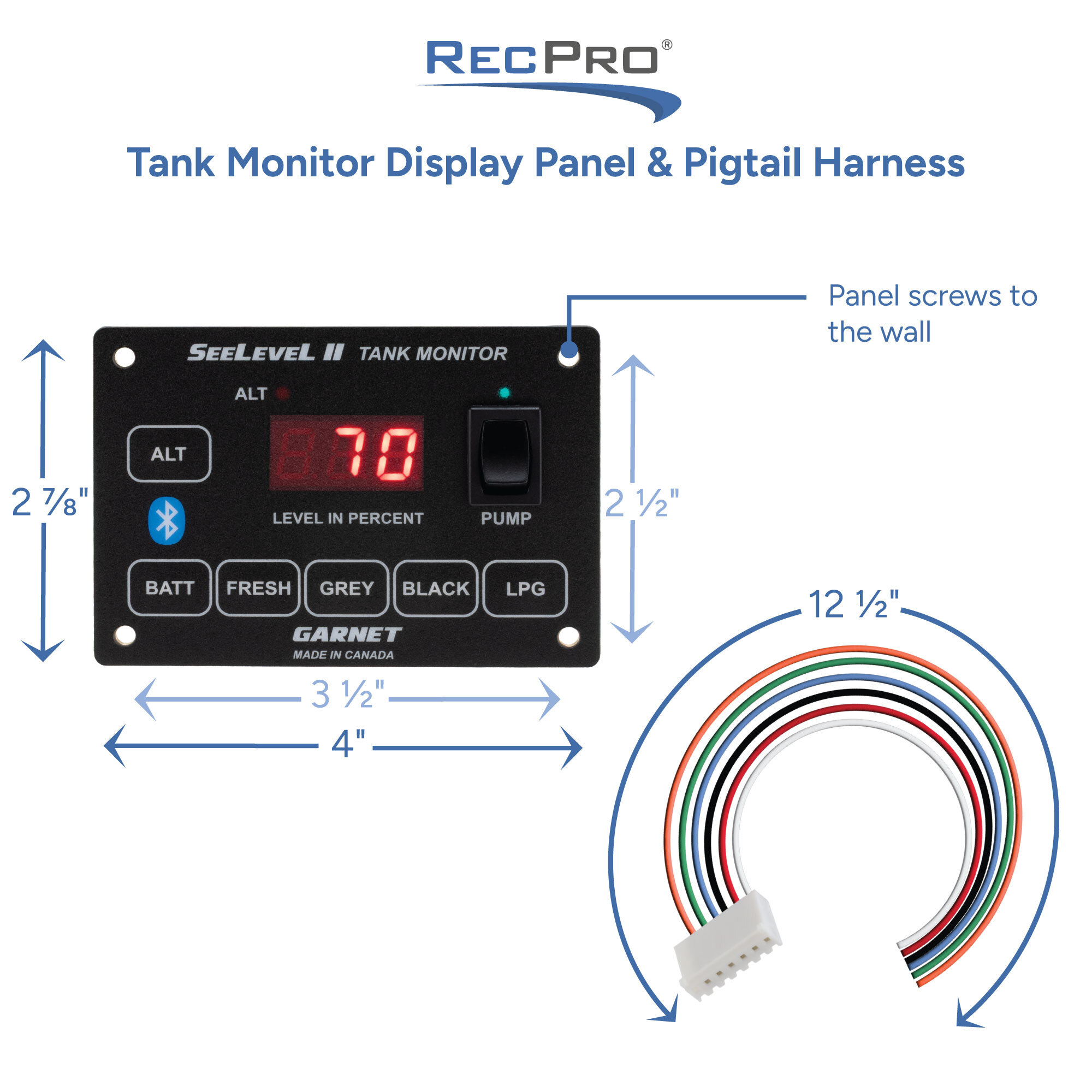

Display Specs:
- Dimensions: 4" W x 2.8" H x 1" D (with pigtail attached)
- Display Power: 12v DC
- Display Current Draw: > 200mA
- Pump Switch Current Rating: Max 10A
- The use of a relay is required if more than 10 amps is needed for the pump
- The pump wiring MUST be equipped with a 10 amp fuse

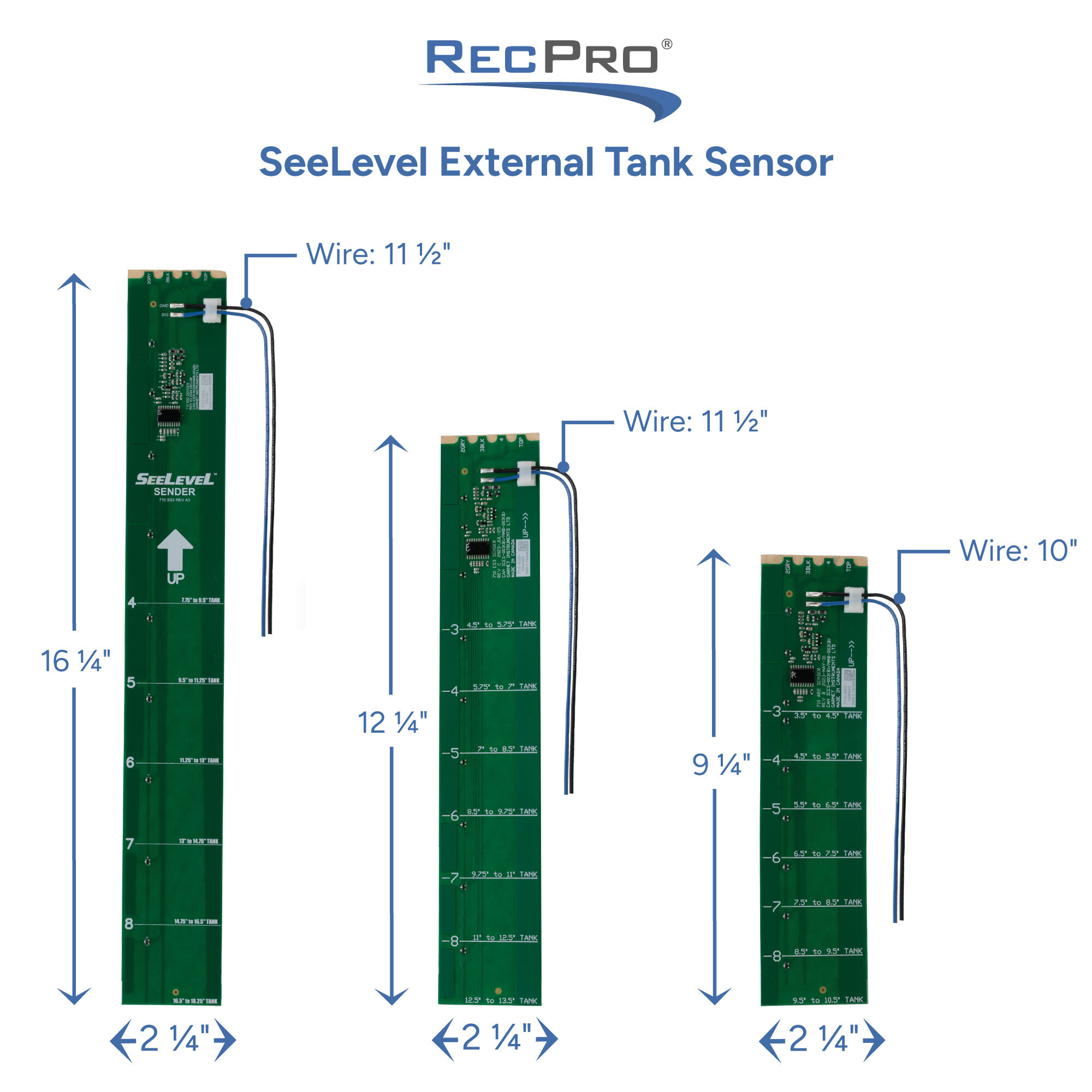

Sensor Information:
- Peel and stick
- Cut to fit
- Stackable (with same sensor model)
- 2 wire connection
- Works on plastic, polyethylene, and fiberglass tanks
- Conformal coated to protect circuit board
- Flexible glass epoxy circuit board
- 710-AR2
- Length: 9”
- Trim Segment Size: 1”
- Minimum Trim Length: 3” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.25” (6mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 3 ½” to 11” tall
- May be stacked with another 710-AR2 sensor for tanks as tall as 20”
- 710-ES3
- Length: 12”
- Trim Segment Size: 1.33”
- Minimum Trim Length: 4” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.33” (8mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 4 ½” to 14” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 26”
- 710-SS2
- Length: 16”
- Trim Segment Size: 2”
- Minimum Trim Length: 6” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.44” (11mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 6 ½” to 18” tall
- May be stacked with another 710-SS2 sensor for tanks as tall as 34”
*Note: do not stack different sensor models together
*Sensors do not work with metal tanks
