SeeLevel by RecPro Bluetooth Tank Monitor Panel Up to 7 Tanks Display

Get Precise Tank Monitoring with the SeeLevel Tank Monitor Kit

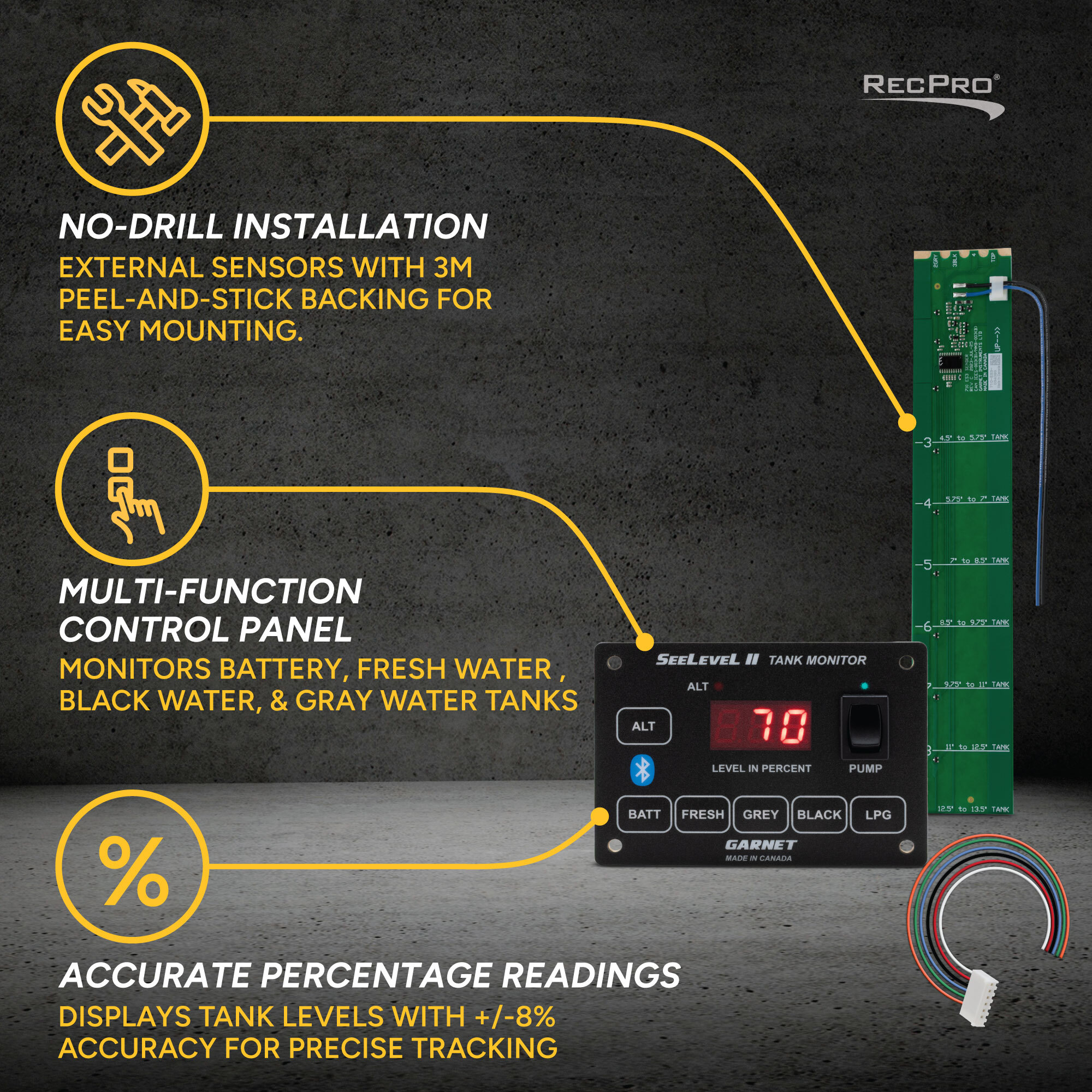

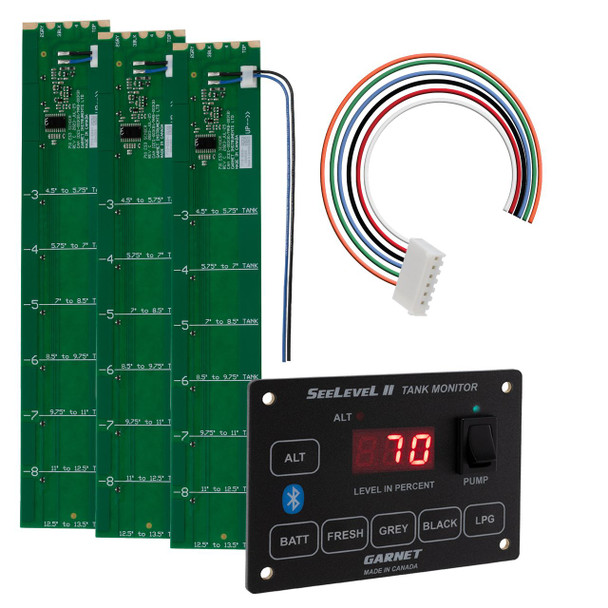

This SeeLevel Tank Monitoring System comes with one tank monitor display, one pigtail wire harness, four mounting screws, and three external tank sensors. This tank monitoring system gives you the ability to accurately monitor fresh, gray, and black water tanks as well as a single LPG tank and your battery voltage. This tank monitoring system is capable of monitoring up to 7 tanks, although additional tank sensors may be required.

The SeeLevel Tank Monitoring System displays the liquid levels of your water tanks as a percentage, and with an accuracy of +/- 8 %. This percentage is shown on the LED display of the tank monitor panel, or on your phone via Bluetooth connection and the SeeLevel mobile app. This allows you to monitor the liquid levels of your water tanks with much greater accuracy than a typical tank monitoring system, which often shows tank levels as a general F (full), ⅔, ⅓, and E (empty). This SeeLevel tank monitoring system even gives you the ability to monitor your tank levels as you fill or drain your tanks. You can even set alarms for high or low sewage levels, fresh water levels, and LPG levels.

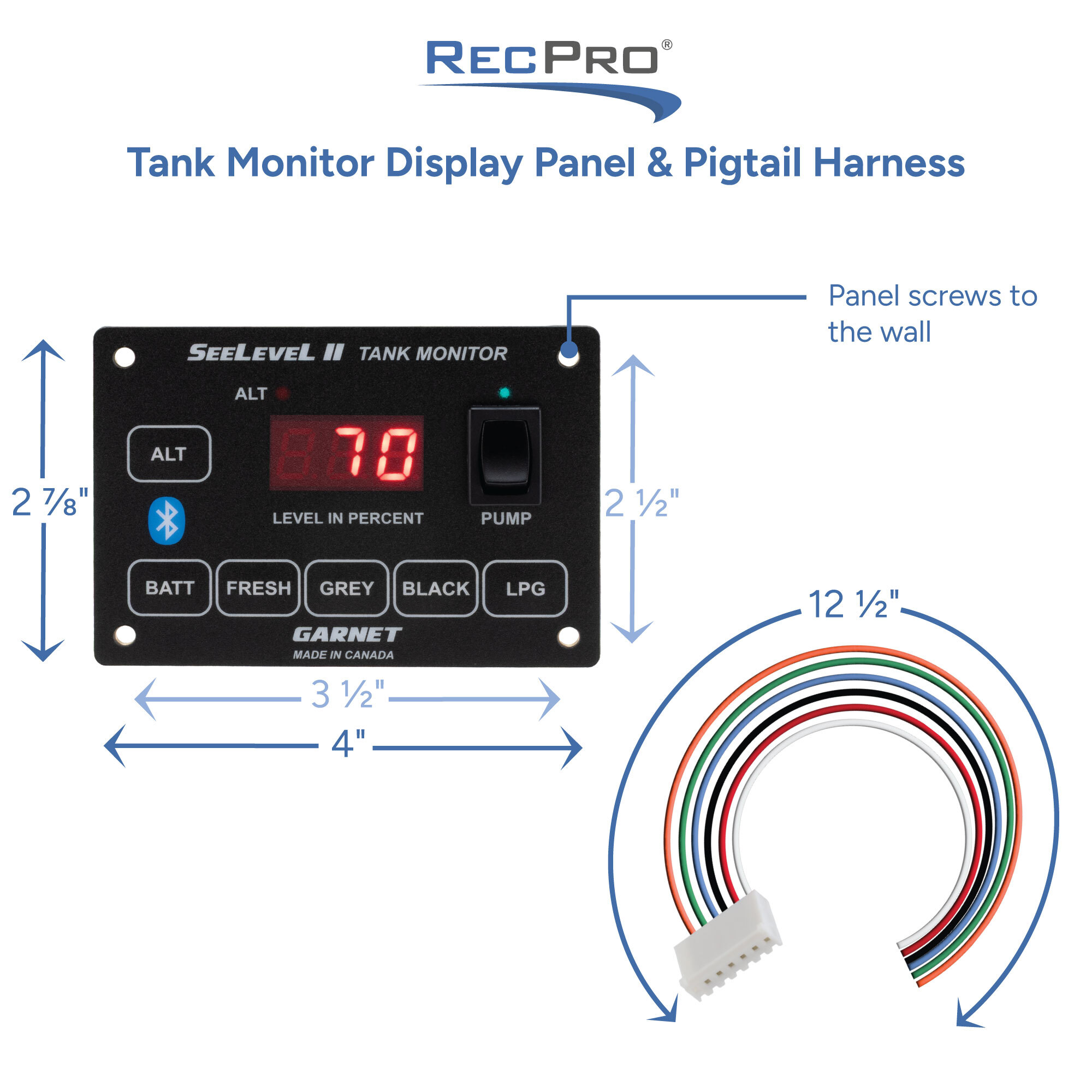

The tank monitor panel is small and discreet, measuring only 4" W x 2.8" H x 1" D (with pigtail attached), and is easily installed on your wall using the four included mounting screws. The monitor panel runs on 12V DC power and draws less than 200mA. The monitor panel is also equipped with a 3-way pump switch with a max current rating of 10 amps (pump wiring should be equipped with a 10 amp fuse).

The monitor panel of this system is easy to attach to your wall using the four included screws, and measures only 4" W x 2.8" H x 1" D (with pigtail attached), making it quite discreet. The monitor panel runs on 12V DC power with a small amp draw of less than 200 mA and features a built-in 3-way pump switch with a max current rating of 10 amps. Your pump wiring should be equipped with a 10-amp fuse, and you will need to use a relay if your pump requires more than 10 amps.

SeeLevel Tank Sensors

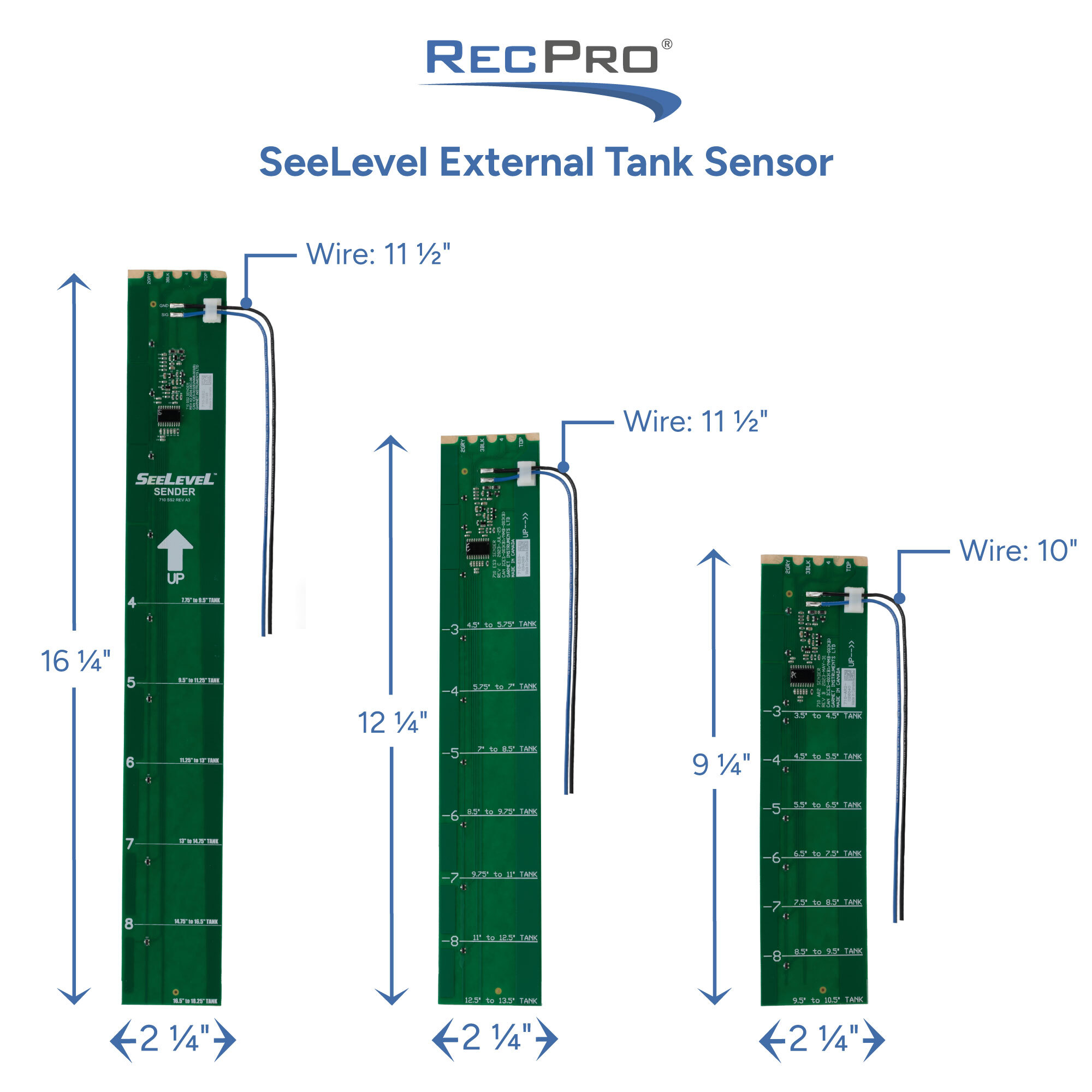

The SeeLevel Tank Monitor system comes with 3 tank sensors, with three sensor size models to choose from: the 9” long 710-AR2 model, the 12” long 710-ES3 model, and the 16” long 710-SS2 model. These tank sensors offer an accuracy of +/- 8% or better and are designed to be externally mounted on your water tanks, and require no drilling to do so. The sensors are built out of a glass epoxy printed circuit board, which makes these sensors flexible enough to conform to the shape of your water tanks. These printed circuit board sensors are also given a conformal coating, which protects them against moisture, dust, chemicals, and extreme temperatures.

The back of these tank sensors is laminated with a layer of 3M 300LSE adhesive, allowing you to easily peel-and-stick these sensors on compatible plastic, polyethylene, or fiberglass water tanks (Note: these sensors are not compatible with metal water tanks). Coupled with their simple two-wire design, you’ll find that these tank sensors are remarkably easy to install.

These SeeLevel tank sensors also have a few other useful features. Each sensor has programmable tabs that you can cut, which allow you to identify the type of tank the sensor is on. The sensors are also trimmable, allowing you to get a more precise fit on smaller tanks. You can also stack two of these tank sensors to accommodate larger tanks. However, you must use two of the same sensor model when stacking tank sensors together. You cannot mix and match different sensor models when stacking. For further details on each sensor model, refer to the “Sensor Options” segment in the details panel.

Keeping track of the fresh water and waste levels in your tanks is vital when you’re on the road, especially when you're boondocking or off-grid camping. So, make sure you can keep an accurate track of your tank levels with the SeeLever Bluetooth Tank Monitoring Systems. Use our website to order yours today, or chat with our Customer Care Team if you need further assistance.
