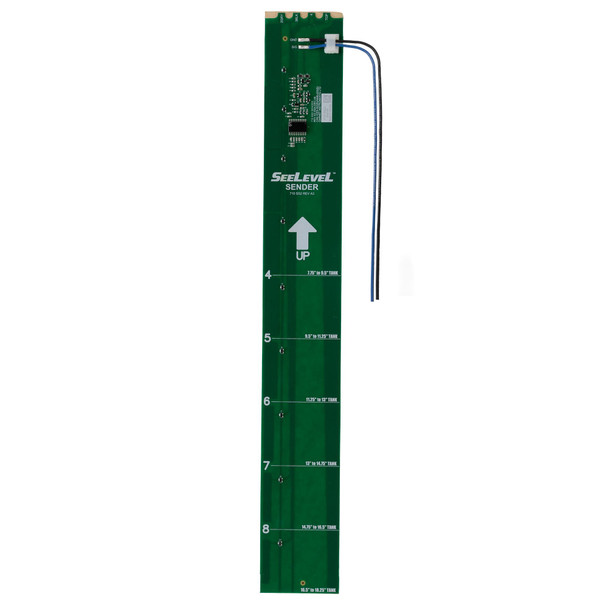

SeeLevel by RecPro External RV Tank Sensor Monitor - Peel and Stick
- SKU:
- RP-710-AR2
FREE SHIPPING
100% GUARANTEE
Description
Precision Measurements with SeeLevel External Tank Sensors
These are external water tank sensors designed for use with 708, 709, and 710 model SeeLevel tank monitoring systems. These sensors are made with a flexible glass epoxy circuit board, which allows the sensors to bend and conform to the shape of the tank. The flexible circuit board is covered by a durable conformal coating, which protects it from moisture, dust, chemicals, and extreme temperatures.

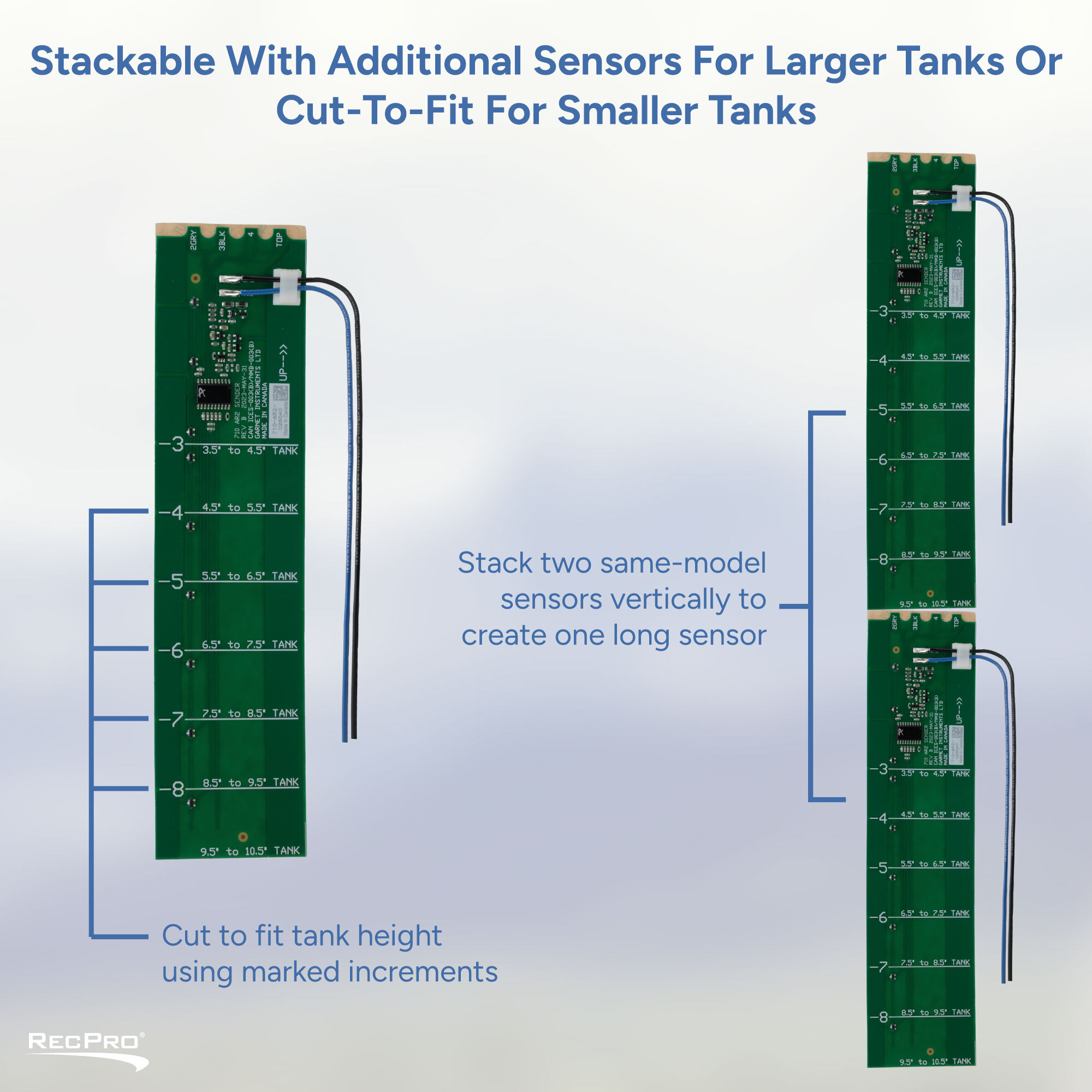

The fine resolution of these tank sensors offers precise measurement of the liquid inside your water tank, with an accuracy of +/- 8% or better, depending on the height and shape of your water tank. These SeeLevel tank sensors may be cut in segments for a more precise fit on your water tank, or they can be stacked to fit larger water tanks. Keep in mind that stacked sensors must be the same model. Do not mix sensor models when stacking.

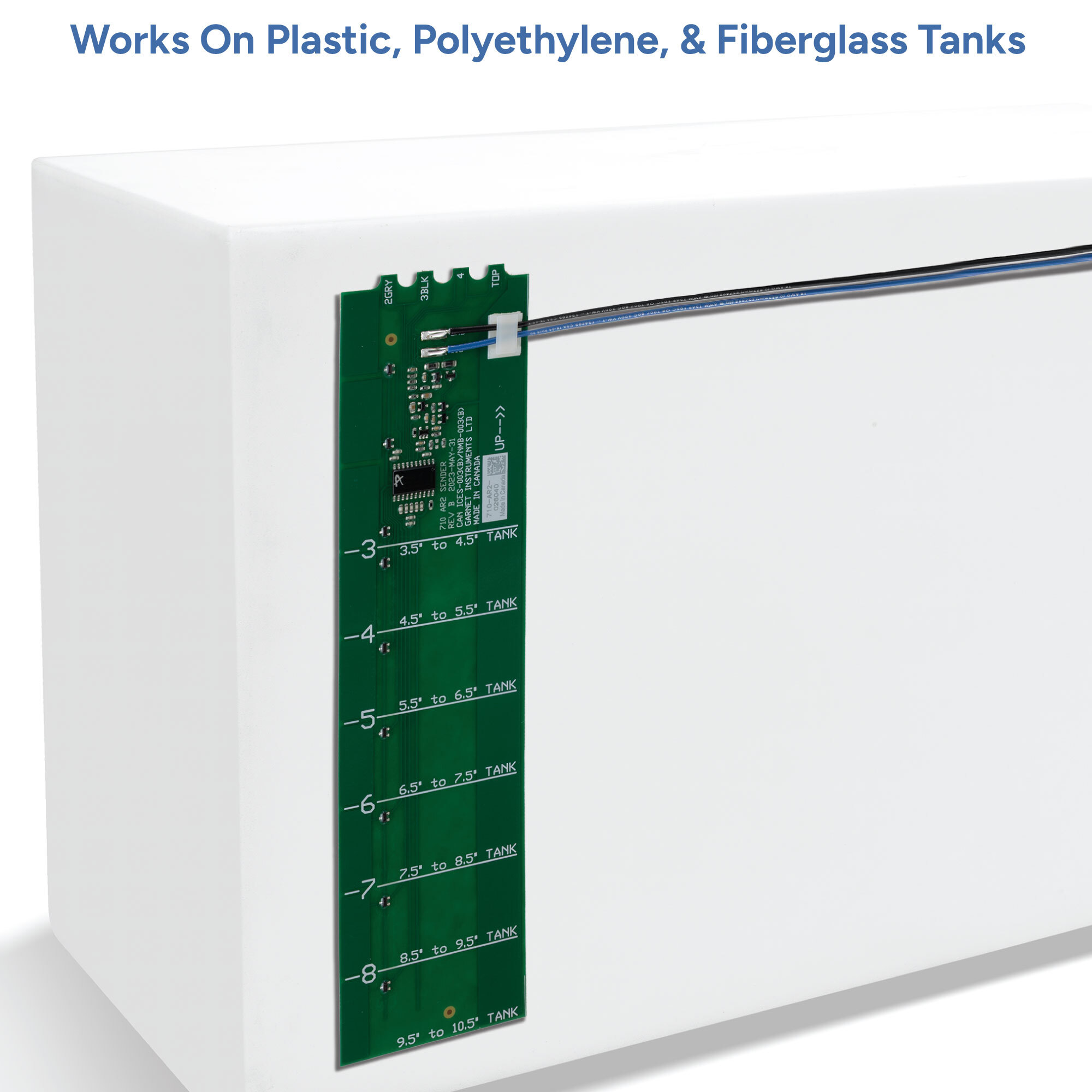

These sensors can be installed easily and are compatible with most plastic, polyethylene, and fiberglass water tanks. The backs of these externally mounted tank sensors are laminated with 3M 300LSE bonding adhesive, allowing for a quick and easy peel-and-stick application without needing to drill holes into your water tanks. Each SeeLevel tank sensor is equipped with two 18 AWG 10 ½" long wires for a simple 2-wire connection. Additionally, these tank sensors feature programmable tabs that allow you to identify what type of tank the sensor is on when looking at your tank monitor display.

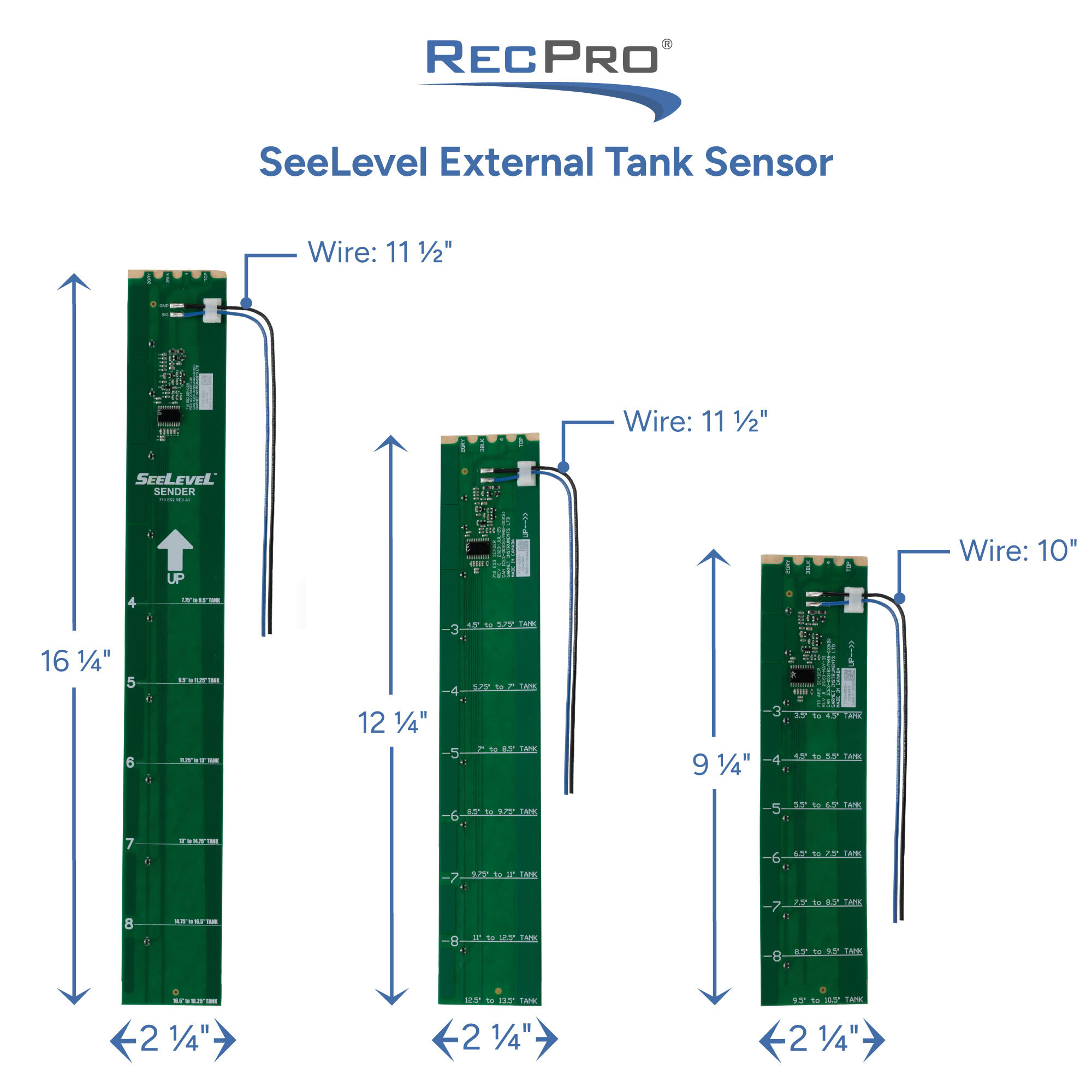

710-AR2. The 710-AR2 model sensor offers the highest resolution at 0.25" (6mm). This model measures 9" long, and is trimmable in 1" segments, allowing you to trim the sensor down to as short as 3". This tank sensor is ideal for water tanks measuring 3 ½" to 11" tall, but may also be used on tanks as tall as 20" when stacked with an additional 710-AR2.
710-ES3. The 710-ES3 model SeeLevel tank sensor offers a resolution of 0.33" (8mm). This tank sensor is 12" in length, and is trimmable in 1.33" segments, allowing you to trim the sensor down to as short as 4". This tank sensor is ideal for water tanks that are 4 ½" to 14" tall, or can be used on water tanks as tall as 26" when stacked with an additional 710-ES3.
710-SS2. The 710-SS2 model SeeLevel tank sensor has a resolution of 0.44" (11mm) and measures 16" long. This tank sensor model is trimmable in 2" segments, and can be trimmed down to as short as 6". This tank sensor is ideal for water tanks measuring 6 ½" to 18" tall, and may be stacked with an additional 710-SS2 sensor for tanks as tall as 34".
If you want to take full advantage of your SeeLevel tank monitoring system, then you need to have the right SeeLevel external tank sensors. Use our website to order yours today, or chat with our Customer Care Team for further assistance.
Details:
- Peel and stick
- Cut to fit
- Stackable
- Fine resolution
- Precise measurement
- External mount
- No drilling needed
- Programmable tabs
- 2 wire connection
- Works on plastic, polyethylene, and fiberglass tanks
- Laminated back with 3M 300LSE adhesive
- Conformal coating for circuit board protection
- Flexible glass epoxy circuit board
- Compatible with SeeLevel 708, 709, and 710 tank monitor systems
*Does not work with metal tanks.*
*Do not mix sensor models when stacking.*
Sensor Options:
- 710-AR2
- Length: 9”
- Trim Segment Size: 1”
- Minimum Trim Length: 3” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.25” (6mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 3 ½” to 11” tall
- May be stacked with another 710-AR2 sensor for tanks as tall as 20”
- 710-ES3
- Length: 12”
- Trim Segment Size: 1.33”
- Minimum Trim Length: 4” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.33” (8mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 4 ½” to 14” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 26”
- 710-SS2
- Length: 16”
- Trim Segment Size: 2”
- Minimum Trim Length: 6” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.44” (11mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 6 ½” to 18” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 34”
