Monitor Your Tanks with Ease with a SeeLevel Monitoring System
Having multiple tanks can be hard when you have to keep track of the levels inside. Bulky monitoring systems make your RV look messy but going out to manually check is just a pain. Well with RecPro, you can get yourself set up with a SeeLevel tank monitoring system and monitor your tanks in a whole new and better way.

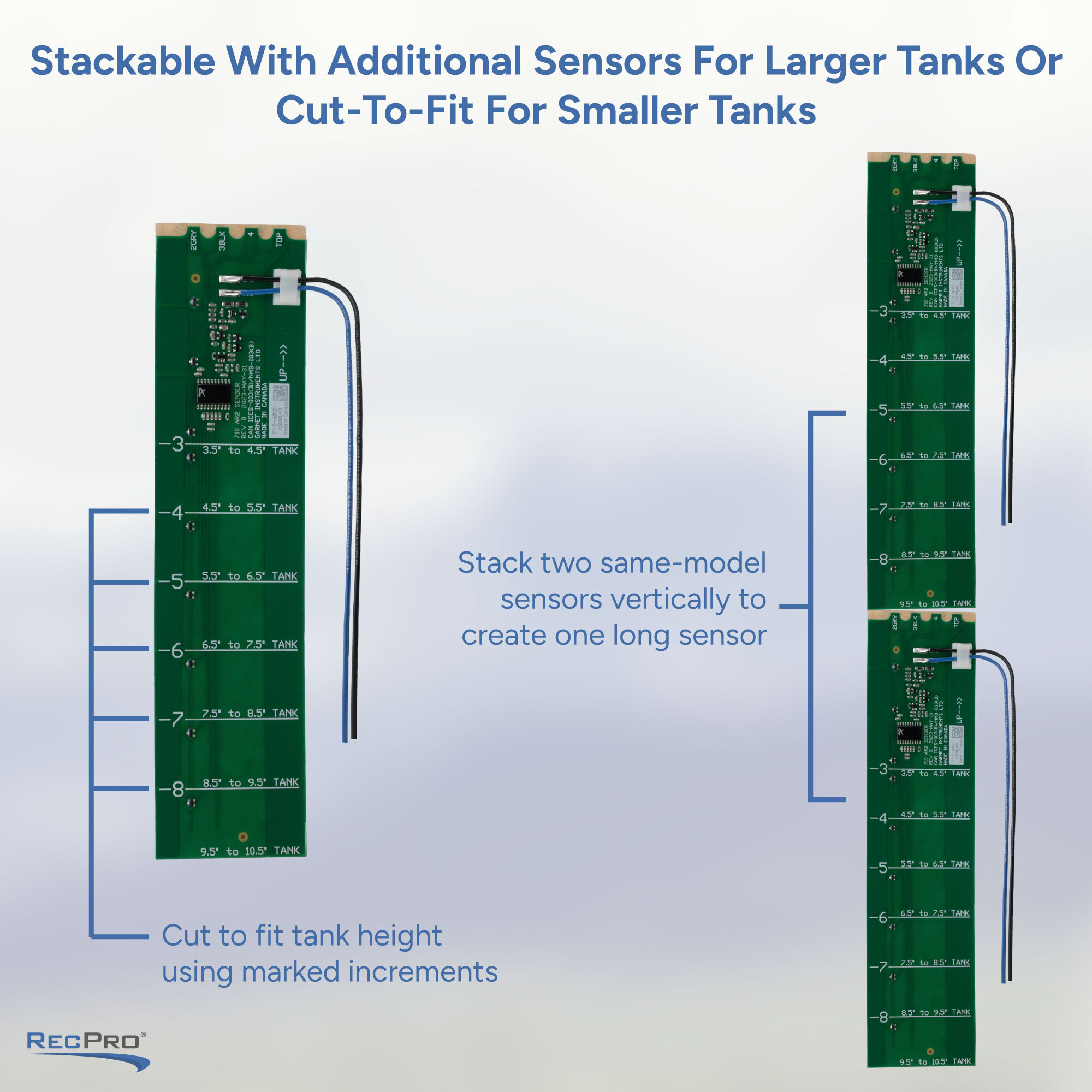

This monitoring system can monitor up to 7 tanks, 2 fresh water, 3 gray water, and 3 black water tanks. The tanks are connected with the optional sensors which come in several lengths so that they easily fit a variety of tanks. Is your tank bigger or smaller than the offered sizes? No problem! These sensors are able to be trimmed or stacked to add or subtract length to them, making them perfectly customizable to your tank. Do note that you cannot stack different sensor types. So AR2 can only go with AR2, ES3 with ES3, and SS2 with SS2. But the different sensors can be hooked to the same module. So you can have one tank with an AR2 and another tank with an ES3.

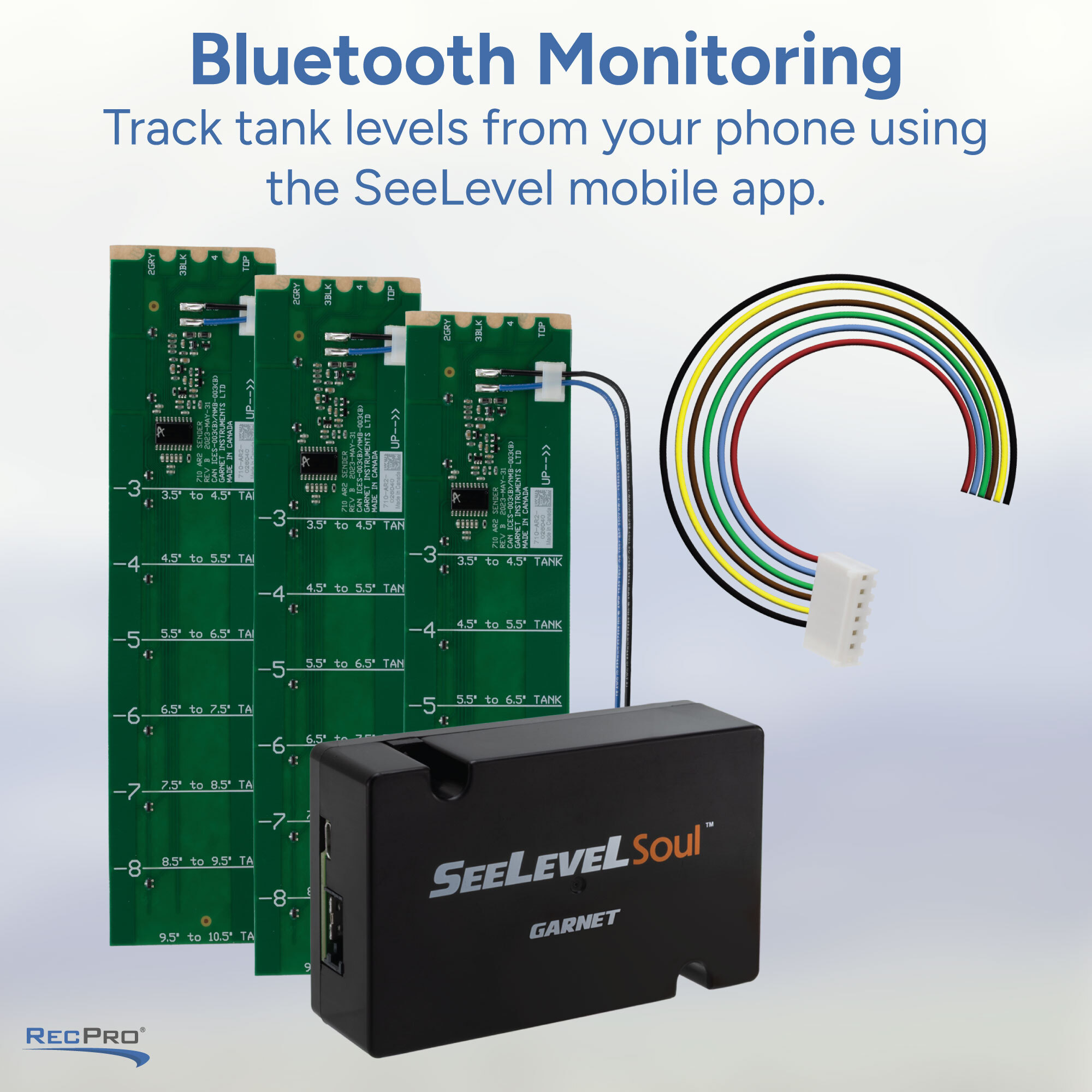

This module comes with a 7-pin pigtail harness that makes wiring a breeze. It is a 12V device and can also be attached to monitor an LPG tank (sensor not included). This module communicates through two methods. It can be plugged into a monitor display (not included) by an RV-C Can connector or it can connect via bluetooth to a SeeLevel app for easy on-the-go monitoring. The module also has a micro USB port so that a computer can be connected for easy setup and configuration.
Make your life easier with a tanking monitoring system from RecPro. Keep track of the level of multiple tanks with no problem. You can order your system online from our website and see how easy the upgrade makes your life. If you have questions, you can reach out to our Customer Care Team.
Details:
- Tank monitoring system
- Data link module with sensors
- Can monitor up to 7 tanks (2 fresh, 3 gray, and 3 black)
- Bluetooth connectivity
- Module communicates through bluetooth or RV-C Can connector
- Has micro USB port to connect to computer for configuration

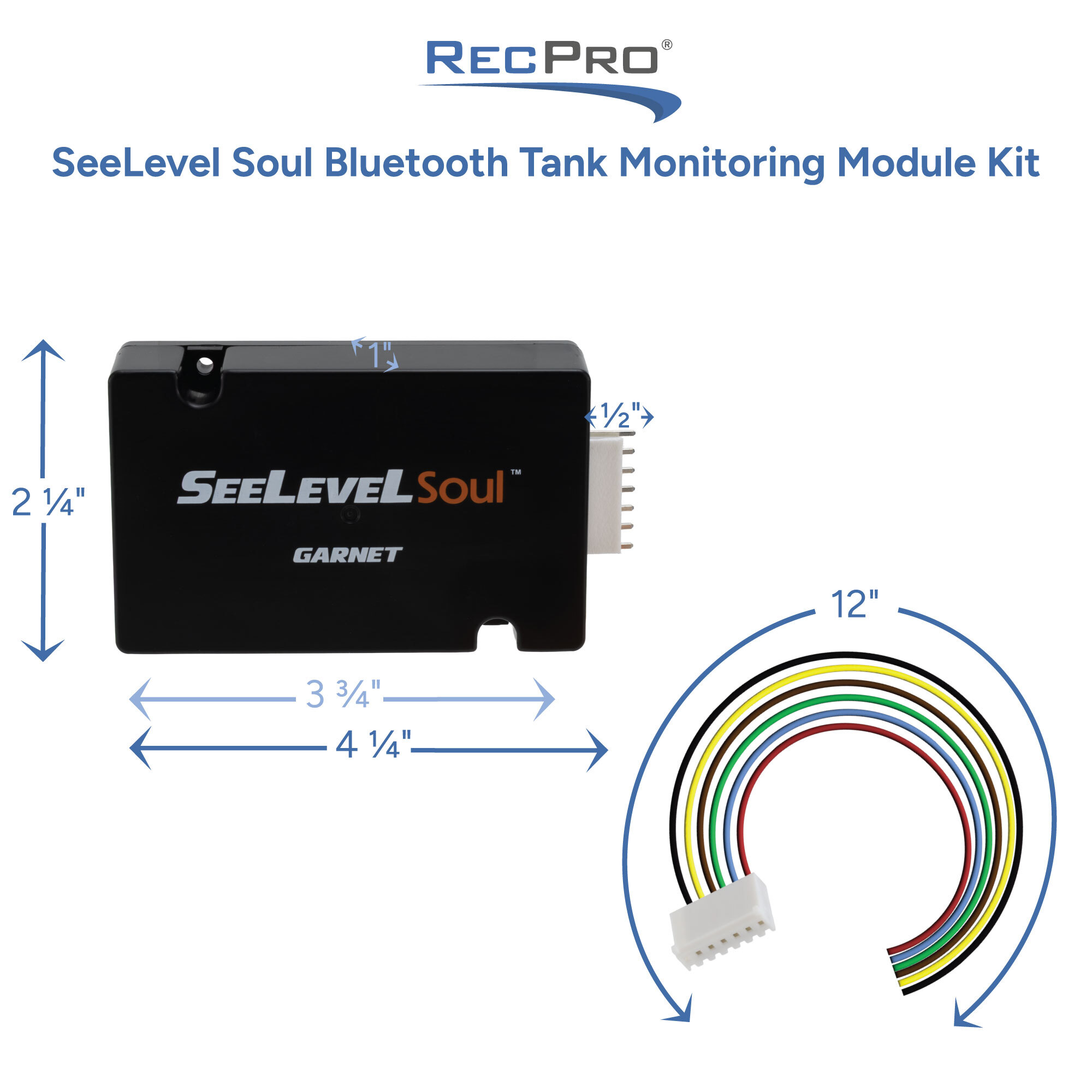

- Module dimensions: 3 ⅝”W x 2 ¼”H x 1”D
- Mounting holes about ¾” from center of hole to edge of housing
- Housing material: ABS plastic
- Housing color: black
- Comes with RP-710 sensors
- Comes with 12” 7-pin pigtail harness
- 12V DC hook up
- Can connect to LPG tank too (sensors not included)
- Power circuit must be fused (max rating of 7.5A, relay required is higher amps are needed)

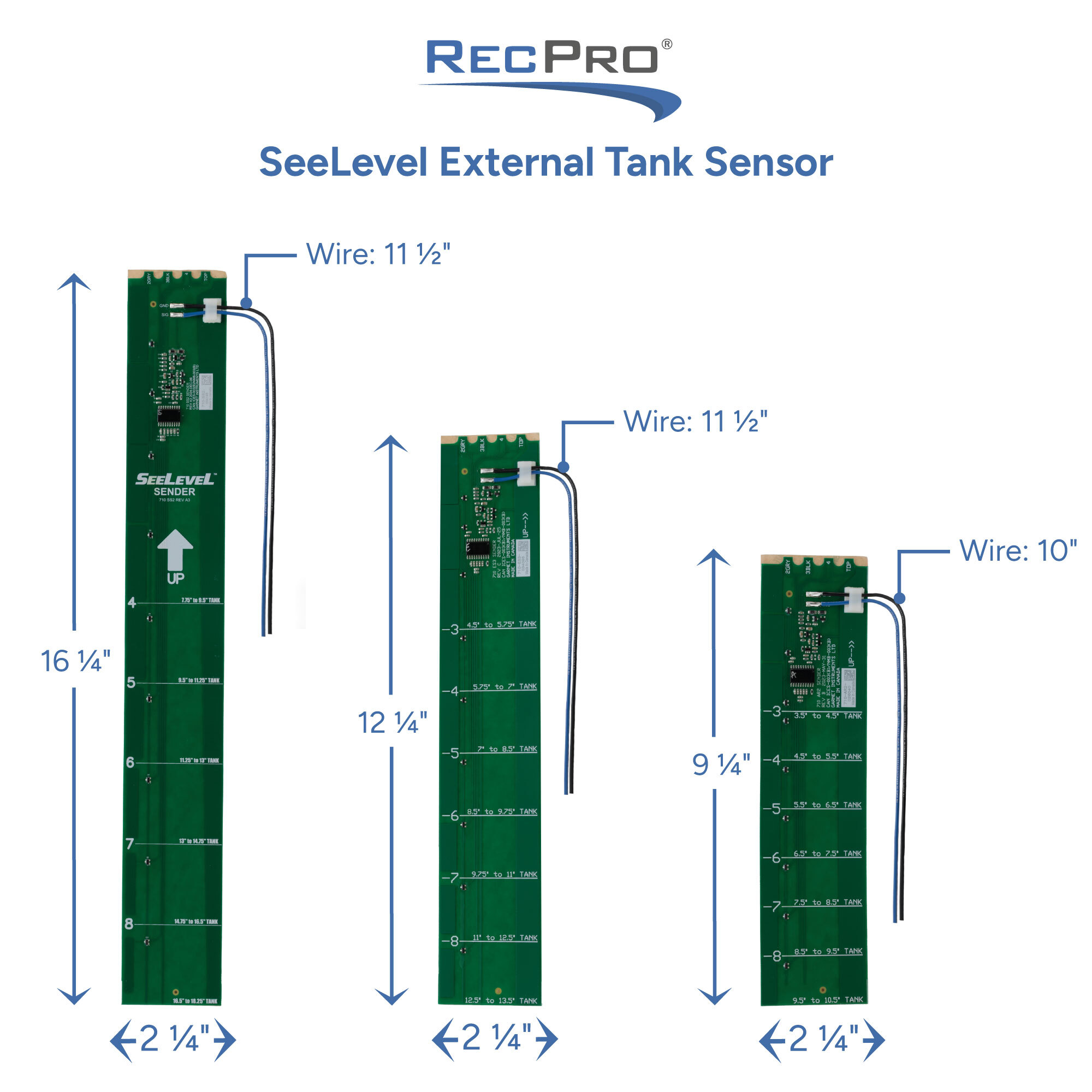

Sensor Information:
- Peel and stick
- Cut to fit
- Stackable (with same sensor model)
- 2 wire connection
- Works on plastic, polyethylene, and fiberglass tanks
- Conformal coated to protect circuit board
- Flexible glass epoxy circuit board
- 710-AR2
- Length: 9”
- Trim Segment Size: 1”
- Minimum Trim Length: 3” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.25” (6mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 3 ½” to 11” tall
- May be stacked with another 710-AR2 sensor for tanks as tall as 20”
- 710-ES3
- Length: 12”
- Trim Segment Size: 1.33”
- Minimum Trim Length: 4” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.33” (8mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 4 ½” to 14” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 26”
- 710-SS2
- Length: 16”
- Trim Segment Size: 2”
- Minimum Trim Length: 6” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.44” (11mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 6 ½” to 18” tall
- May be stacked with another 710-SS2 sensor for tanks as tall as 34”
*Note: do not stack different sensor models together
*Sensors do not work with metal tanks
