SeeLevel by RecPro Tank Monitor Panel and Sensor Kit for Fresh, Gray, and Black Tanks

Precise Monitoring With This SeeLevel Tank Monitor Kit

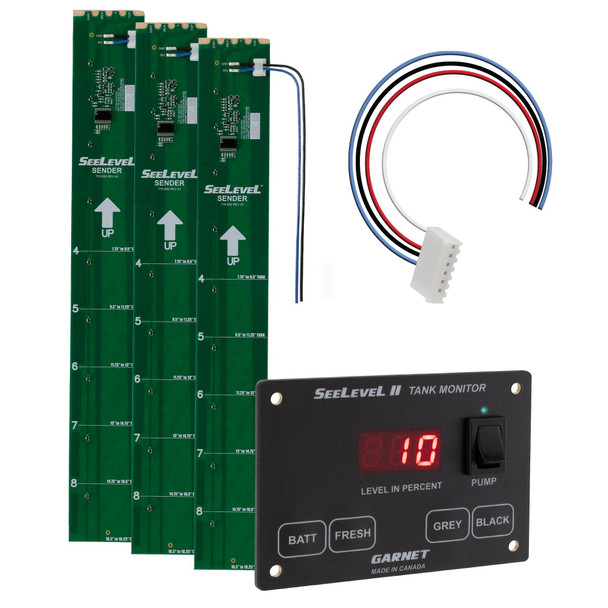

This is a full SeeLevel Tank Monitor Kit, which includes a tank monitor display panel, a pigtail wiring harness, four mounting screws, and three SeeLevel tank sensors. With this tank monitoring system, you can accurately monitor the levels of your fresh, black, and gray water tanks, control your pump, and even monitor your battery voltage.

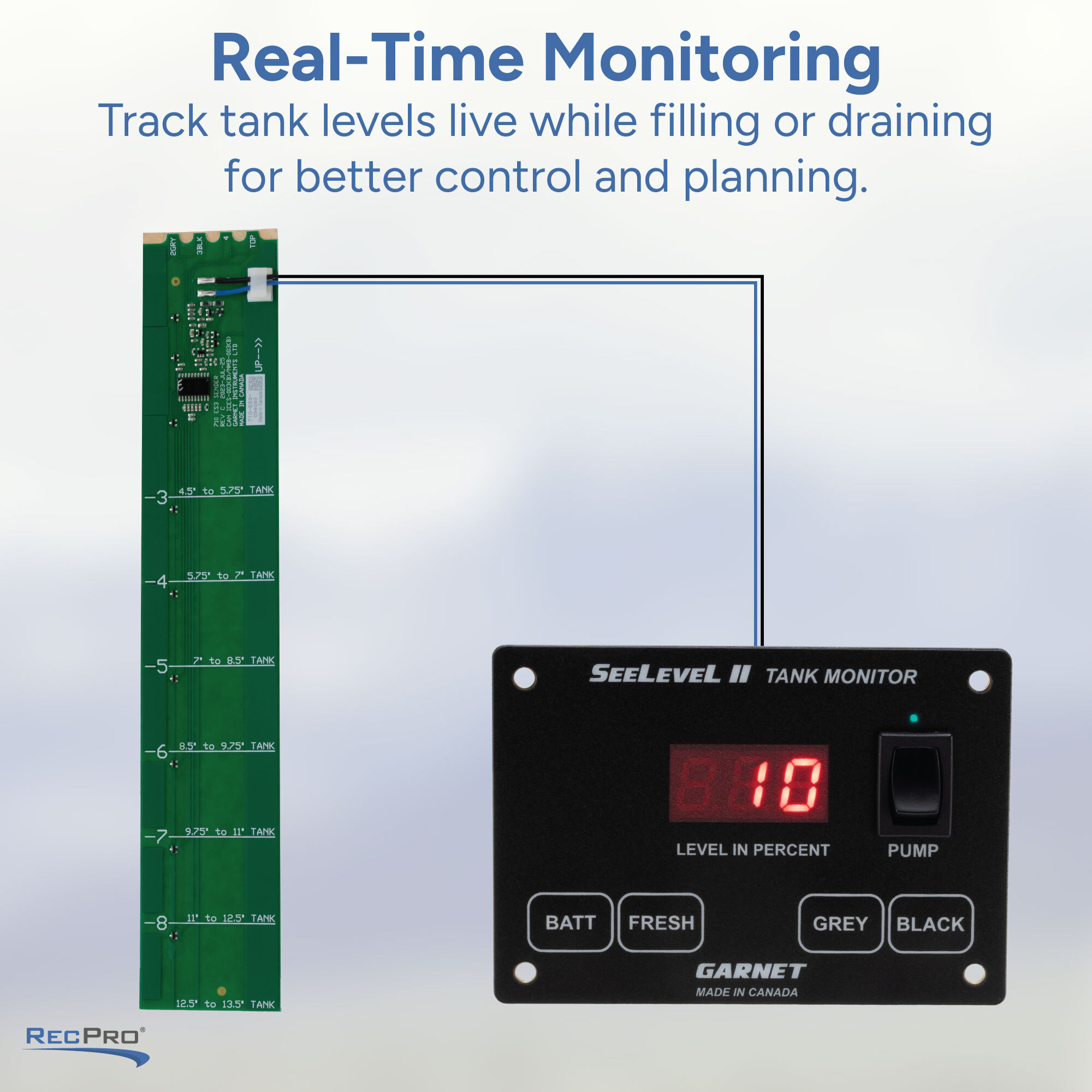

The levels of your water tanks are shown as a percentage on the LED display of the tank monitor panel, with an accuracy of +/- 8%. This is a far more precise measurement of your water tank levels than typical water tank monitor systems, which often show tank levels as F (full), ⅔, ⅓, and E (empty). This tank monitor system even gives you the ability to monitor your tank levels as you fill or drain them.

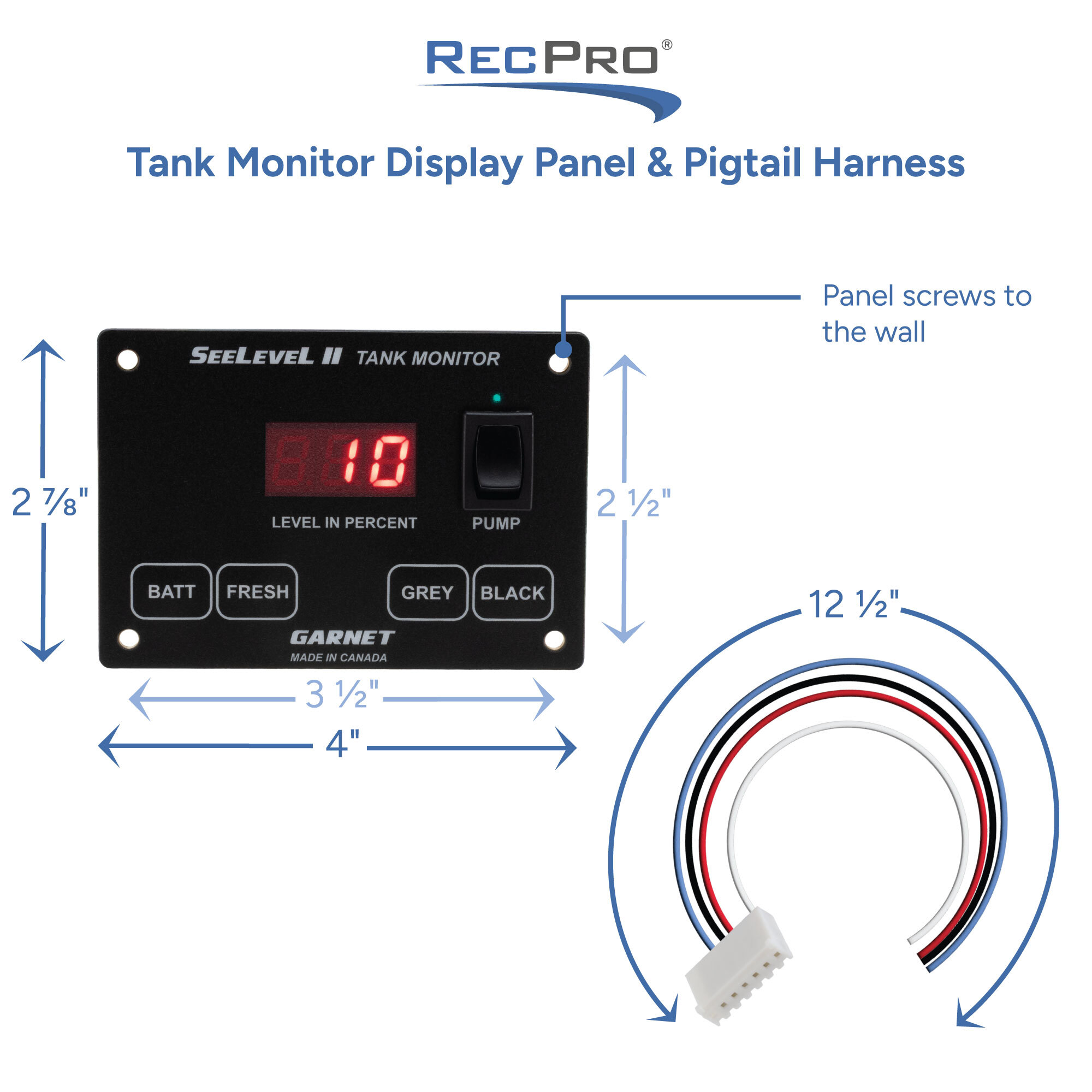

The monitor panel measures a tiny 4" W x 2.8" H x 1" D (with pigtail attached), and easily attaches to your wall using the four included mounting screws. The monitor panel operates using 12V DC power with a tiny amp draw of less than 200mA. A 3-way pump switch is also built into the tank monitor panel with a maximum current rating of 10 amps. You will need to use a relay if your pump requires more than 10 amps, and your pump wiring should be equipped with a 10-amp fuse.

SeeLevel Tank Sensors

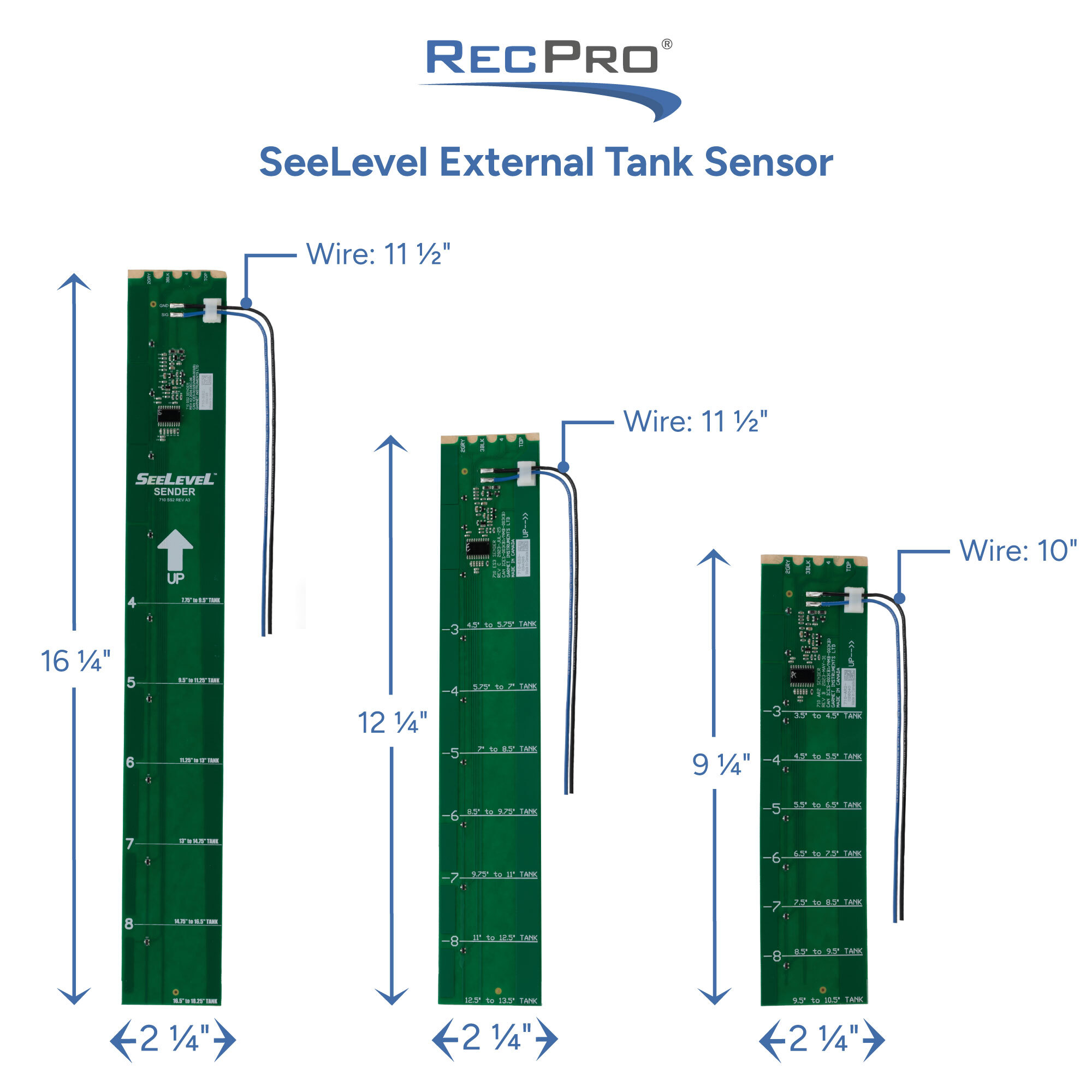

This tank monitor kit comes with three tank sensors, which are available in three size options: the 9” long 710-AR2 model, the 12” long 710-ES3 model, and the 16” long 710-SS2 model. The tank sensors for this system are built out of a flexible glass epoxy PCB (printed circuit board), and offer an accuracy of +/- 8% or better. The flexibility of these sensors allows them to bend and conform to the shape of your water tank. These PCB water tank sensors are given a conformal coating, which defends the sensors against moisture, dust, chemicals, and extreme temperatures. These tank sensors feature a simple two-wire connection and can even be connected to the same wire.

These tank sensors are laminated on the back with a layer of 3M 300LSE adhesive for external mounting, and are compatible with most plastic, polyethylene, and fiberglass water tanks. However, these sensors will not work on metal tanks. You won’t need to drill any holes in your water tanks to install these tank sensors; simply peel and stick.

The tank sensors also feature cuttable programmable tabs that allow you to identify the type of tank the sensor is on. These tank sensors can also be trimmed to fit smaller water tanks or stacked together to fit larger tanks. However, you should not mix tank sensor models when stacking, and should only use two of the same tank sensor model. For further details on each sensor model, refer to the “Sensor Options” segment in the details panel.

When you’re living the RV life, being able to accurately monitor the levels of your water tanks is important, so make sure you’re prepared with this SeeLevel Tank Monitor system. Use our website to order yours today, or chat with our Customer Care Team if you need further assistance.
