SeeLevel™
SeeLevel by RecPro Tank Monitor Panel up to 7 Tank Display, Compatible with Marine NMEA 2000
- SKU:
- RP-709-N2K_NLP
FREE SHIPPING
100% GUARANTEE
Description
Keep on Top of Your Tank Levels with a SeeLevel Tank Monitoring System
When you’re on the road, you don’t want to have to constantly be going outside to check the status of your tanks and if they’re in need of emptying. Make your life easier with a tank monitoring system from RecPro.
This SeeLevel system comes with a display panel, a pigtail connector, 3 tank sensors, and mounting screws. This particular system is compatible with NMEA 2000 multiplex systems. The panel screws easily into the wall and the pigtail makes wiring a breeze. The sensors are adhesive so there’s no need to drill into your tanks to install. Do note that these sensors will not work on metal tanks.
This panel has a clear display picture that makes it easy to read your tank levels. It’s also calibrated for highly accurate readings so you’re never left guessing or wondering how close your tank really is to full. On top of fresh, gray, and black water tanks, this system can also monitor battery level. Worried about the size of your tank? No need! This system comes with a few options that fit a wide variety of tanks. They are also able to be trimmed or stacked to fit an even wider range of tank sizes. Not that different sensors cannot be stacked together, like must be with like.
With a handy all in one display panel, your tank monitoring just got a whole lot easier. Order your monitoring system today from our website and see the difference this little system can make. If you have any questions, feel free to contact our Customer Care Team.
Details:
- Tank monitoring panel
- Can monitor up to 7 tanks (battery, fresh, gray, and black)
- Compatible with NMEA 2000 multiplex systems
- Panel screws to the wall
- LED display
- Includes
- Tank Monitor Display Panel
- Pigtail Harness
- 3 Tank Sensors
- 4 Mounting Screws

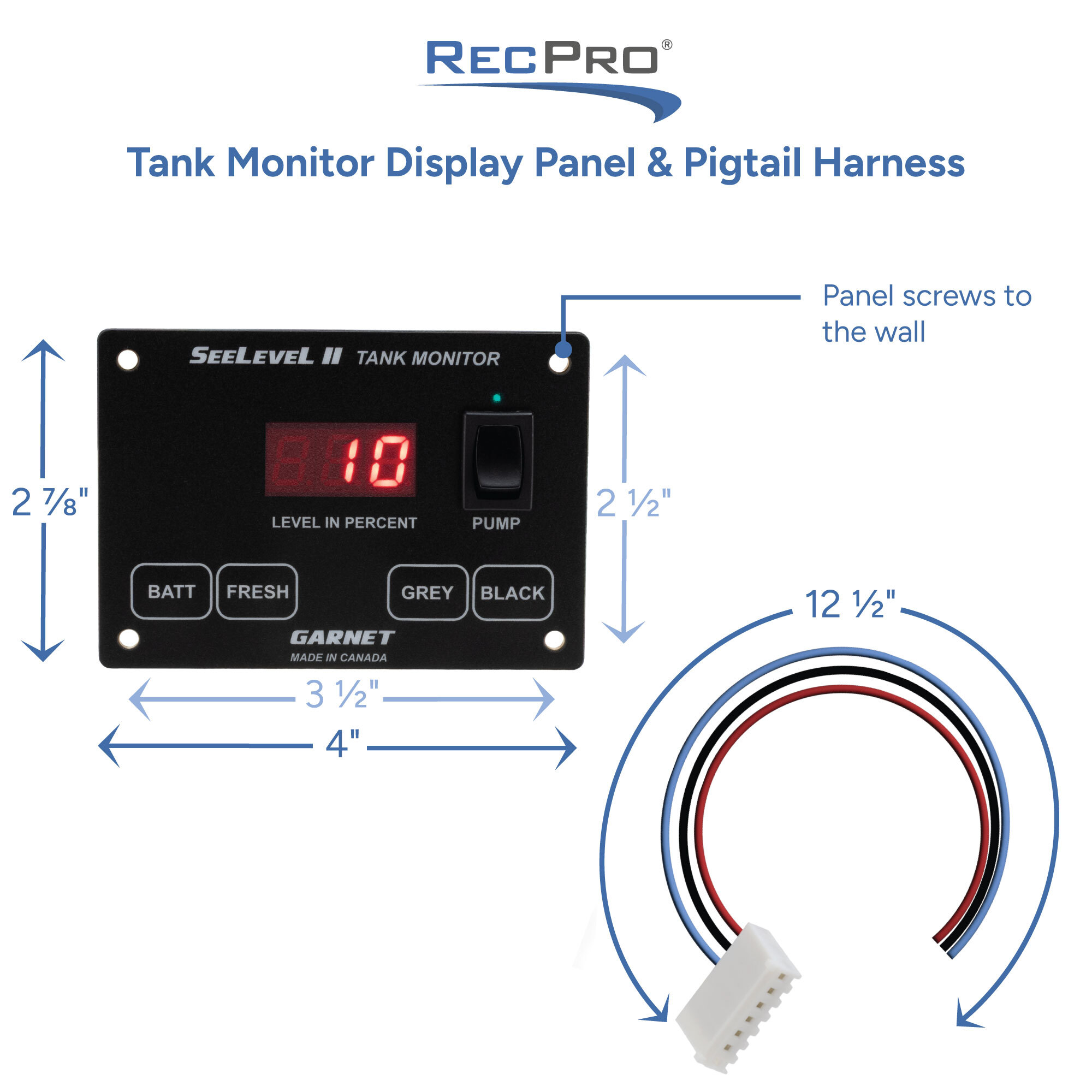

Display Specs:
- Dimensions: 4" W x 2.8" H x 1" D (with pigtail attached)
- Display Power: 12v DC
- Display Current Draw: > 200mA
Details:

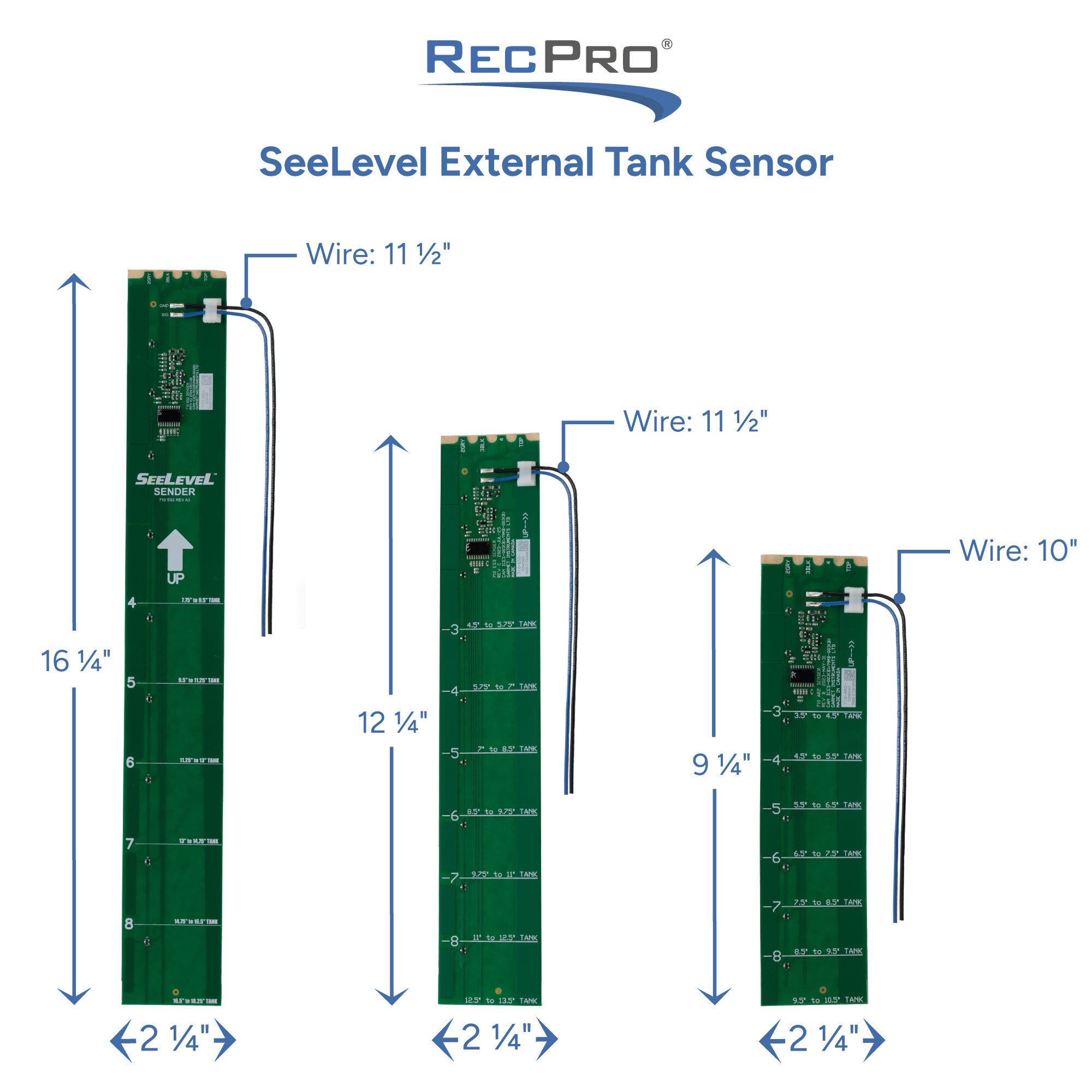

- Peel and stick
- Cut to fit
- Stackable (with same sensor model)
- 2 wire connection
- Works on plastic, polyethylene, and fiberglass tanks
- Conformal coated to protect circuit board
- Flexible glass epoxy circuit board
- 710-AR2
- Length: 9”
- Trim Segment Size: 1”
- Minimum Trim Length: 3” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.25” (6mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 3 ½” to 11” tall
- May be stacked with another 710-AR2 sensor for tanks as tall as 20”
- 710-ES3
- Length: 12”
- Trim Segment Size: 1.33”
- Minimum Trim Length: 4” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.33” (8mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 4 ½” to 14” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 26”
- 710-SS2
- Length: 16”
- Trim Segment Size: 2”
- Minimum Trim Length: 6” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.44” (11mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 6 ½” to 18” tall
- May be stacked with another 710-SS2 sensor for tanks as tall as 34”
