BigFoot RV and Motorhome Hydraulic Automatic Leveling System for 2008-Present Ford E-350

Level Your RV Quickly With The BigFoot RV Leveling System

Owning an RV, camper van, or trailer can be a lot of fun. But what isn’t fun is trying to get your rig level when you set up camp, especially if you are doing it manually. Thankfully, RecPro has a way for you to get your rig level in seconds and with only a push of a button. Check out the Bigfoot automatic RV leveling system!

This American-made leveling system makes setting up camp with your RV, trailer, or camper van easier than ever. Featuring simple, one-touch operation, the Bigfoot hydraulic leveling system can get your rig perfectly level in just 90 to 120 seconds, making this hydraulic leveling system far faster than other electric models out on the market.

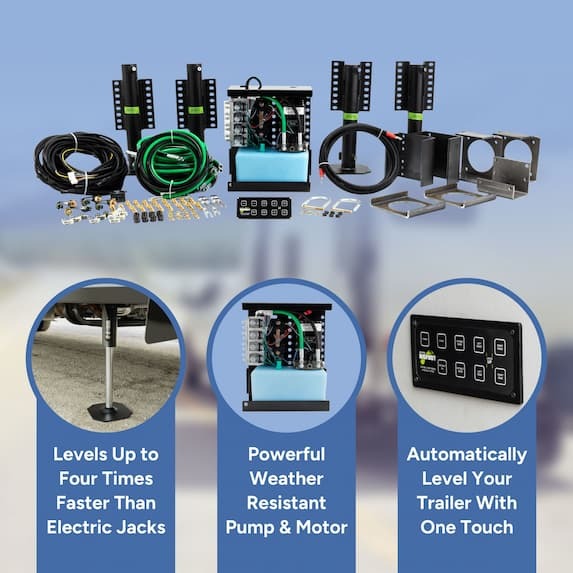

The Bigfoot automatic RV leveling system consists of a powerful central hydraulic pump and four heavy-duty hydraulic cylinders, each of which is capable of lifting up to 8,000 lbs, comes pre-filled, and is factory tested for leakage. The pump and the cylinders can be welded to your vehicle using the included weld-on brackets, or bolted on with the optional bolt-on brackets, and connect to each other via the included universal-length hydraulic lines.

  Features:

• Simple, one-touch operation

• Runs on 12v DC power
• All-Up safety feature
• Ignition safety feature
• Automatic and Manual adjustment feature
• Universal length hydraulic lines

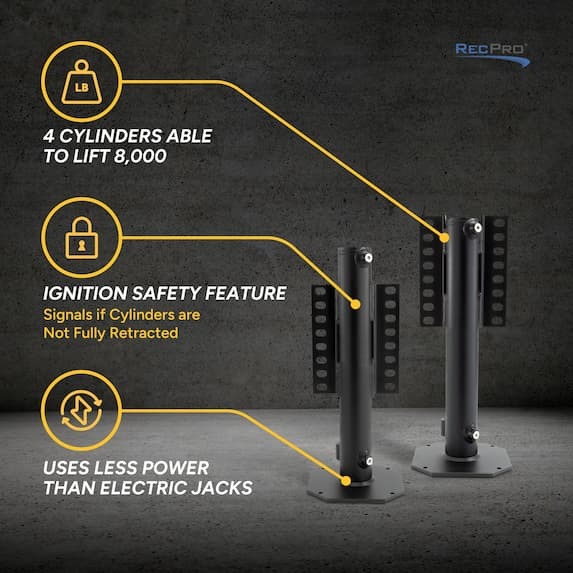

• 4 Powder-coated cylinders capable of lifting 8,000 lbs

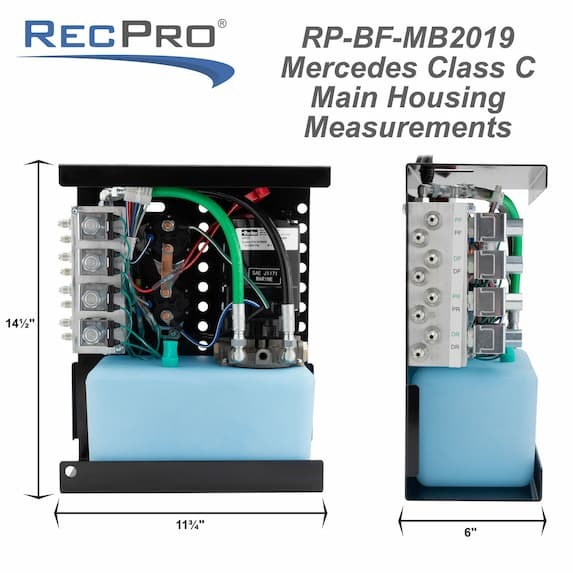

• 1 Central hydraulic pump equipped with a powerful weather resistant marine pump and motor

The pump, cylinders, and heavy-duty steel feet are all powder-coated black, which helps protect all these important components from rust, corrosion, and other harsh outdoor elements. The pump housing also features a black ABS cover that you can trim to your preference.

The Bigfoot RV auto leveling system is controlled and operated via the control panel. The control panel allows you to automatically extend, retract, and level the four hydraulic cylinders simultaneously or manually adjust the cylinders individually. The control panel is also where you will find safety features such as the Ignition Safety, which sounds an alarm if the vehicle engine is running while the cylinders are lowered, and the All-Up safety feature, which sounds an alarm if one or more of your cylinders are not fully retracted. The control panel for this leveling system can be mounted just about anywhere in or on your rig as long as it can be connected to a 12V DC power supply.

The Bigfoot automatic hydraulic RV leveling system ships in four boxes and comes with a lifetime manufacturer warranty for the cylinders, a 2-year Parts warranty, and a 1-year Labor warranty. This RV leveling system is compatible with 2008-present Ford E-350 model chassis, and includes all the parts and hardware needed for installation. However, two quarts of Dexron III fluid (not included) will be needed to fill the hydraulic pump.

Due to the varied layouts, accessories, wiring, user modifications, etc., between each individual RV, some vehicle and RV models may require modifications. This may include modifications to weld-on brackets, limit switch wires, battery cables, vehicle exhaust, RV plumbing or wiring, sub-floor brackets or joists, storage boxes, or floors. Professional installation of the Bigfoot hydraulic automatic RV leveling system is highly recommended and offered by Bigfoot.

If you want to make life with your RV, trailer, or camper van a little easier, then the Bigfoot automatic leveler is a great way to do it. Use our website to order yours today, or chat with our Customer Care Team for further assistance.
