Rockford Fosgate

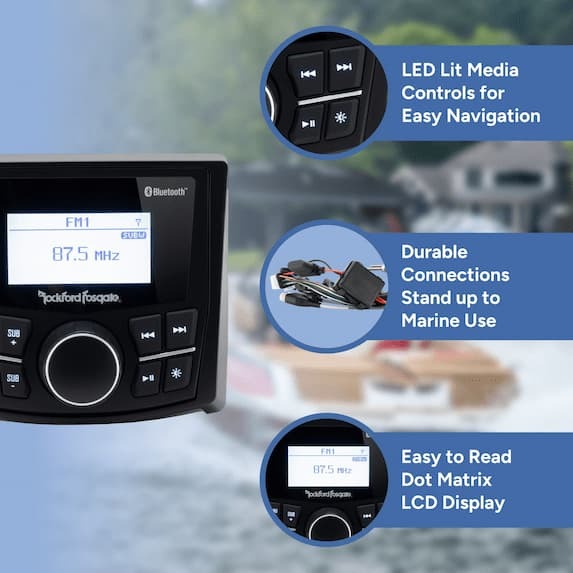

Rockford Fosgate PMX-1 Marine Radio 2.3" Waterproof Marine Stereo Receiver with Bluetooth
- SKU:
- RPM-2020


Description
Step Up Your Media Center with a Marine Media Receiver from RecPro
Playing music while out on the boat doesn’t have to mean bringing a separate system onto your boat. With a quality media receiver, made by Rockford Fosgate, installed on board, you can have easy music control at your fingertips.
This media receiver is 4.5”W x 4.2”H and has a face that sticks out 1.5” from the mounting surface. This receiver requires a 3” diameter cutout and needs at least 3.4” installation depth. This unit has water, dust, and UV resistances that help it last longer and make it suitable for marine environments. Pair this receiver with the easy to use RF Connect app for even better media control.
Take control of your media with a durable media receiver for your boat from RecPro. This marine grade media receiver will be your new best co-captain on your boat. You can purchase yours today on our website or reach out to our Customer Care Team with any questions.
Technical Data:
- Power output:
- CEA-2006 power rating
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω MAX
- ≤1.0% THD+N
- Min. speaker impedance: 2Ω
- Output impedance: <500 Ω
- Max output voltage:
- RCA front: 2V
- RCA rear/sub: 2V
- Signal to noise ratio:
- RCA 2V: >85 dB
- High-Level CEA-2006: >75 dB
- High-Level Max Watts: >85 dB
- Max THD+N: High-Level: <1.0 @ 4-Ohm
- USB Output Current: 1A
- Operating Voltage: 9 - 16 VDC
- USB Version: 2.0
- Idle Current: <2 A
- Fuse Rating: 20 A
- Audio file compatibility: MP3, WAV
- Frequency response:
- RCA: 20 Hz - 20 kHz
- High-Level: 20 Hz - 20 kHz
Measurements
- Dimensions: 4.5”W x 4.2”H
- Face depth: 1.5”
- Mounting depth: 3.38”
- Cutout diameter: 3”
Details:
- Rockford Fosgate marine media receiver
- A2DP and AVRCP Bluetooth wireless streaming
- Multi-region radio frequencies
- AM/FM/WB tuner
- 7-band graphic EQ + PEQ
- Wet bonded 2.3” full monochrome dot matrix LCD display
- Independent subwoofer level control
- Selectable HP/LP/AP crossovers with selectable slope 12/24 dB/Oct
- IP6 marine grade front panel
- 9H tempered glass screen
- Connect with RF Connect app on iOS and Android
- AUX and USB inputs with USB charging
- Voltage gauge with low voltage warning
- FCC, CE, and EN60945 certified
- ASTM B117 and D4329 tested
- IPX6 water intrusion rating
- No clock
- Water, dust, and UV resistant
