SeeLevel™
SeeLevel by RecPro Tank Monitor Panel up to 7 Tank Display, Compatible with RV-C
- SKU:
- RP-709-RVC_NLP
FREE SHIPPING
100% GUARANTEE
Description
Never Guess Your Tank’s Levels Again with a Tank Monitoring System from RecPro
Monitoring your tanks shouldn’t mean crawling under your rig or getting into storage areas to try to look into the tank. It should be as easy as pushing a button and knowing exactly what level your tank is at. Well with RecPro, that just became a reality.

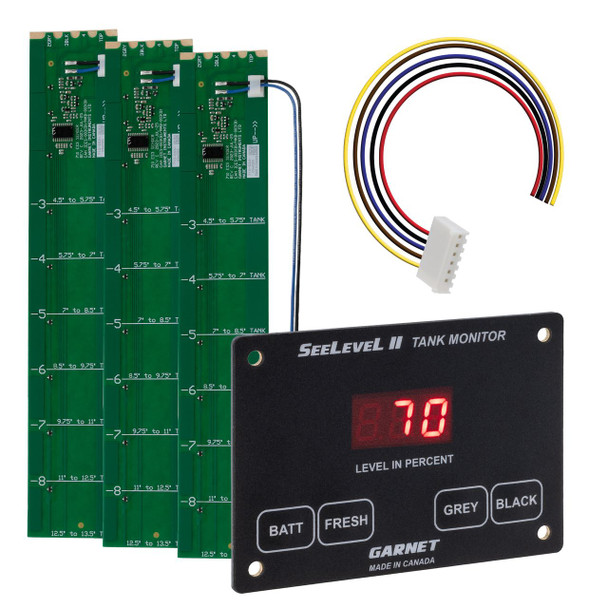

Get easy tank reading with a tank monitoring system today. This system comes with a display panel, the 7-pin pigtail connector for wiring, 3 tank sensors, and the screws needed for panel mounting. This system is also compatible with RV-C multiplex systems. Installation for this system is easy, requiring just some simple wiring. The sensors are even easier as they’re adhesive so you don’t even need to drill into your tanks in order to monitor them.
We all know tanks come in many sizes and shapes. These sensors were made with that in mind. First, they come in 3 options for sizes for a baseline fit. But they also are able to be trimmed down or stacked in order to add or reduce more height to the sensor. So no matter what size tank wall you have, you can get a perfect fit for the most accurate read. On top of monitoring your tanks, this system can also monitor your battery level from the same panel.
Make an easy decision that will make your life easier with a new tank monitoring system from RecPro. You can order yours online today from our website and get your rig upgraded in no time. If you have any questions, feel free to reach out to our Customer Care Team for more information.

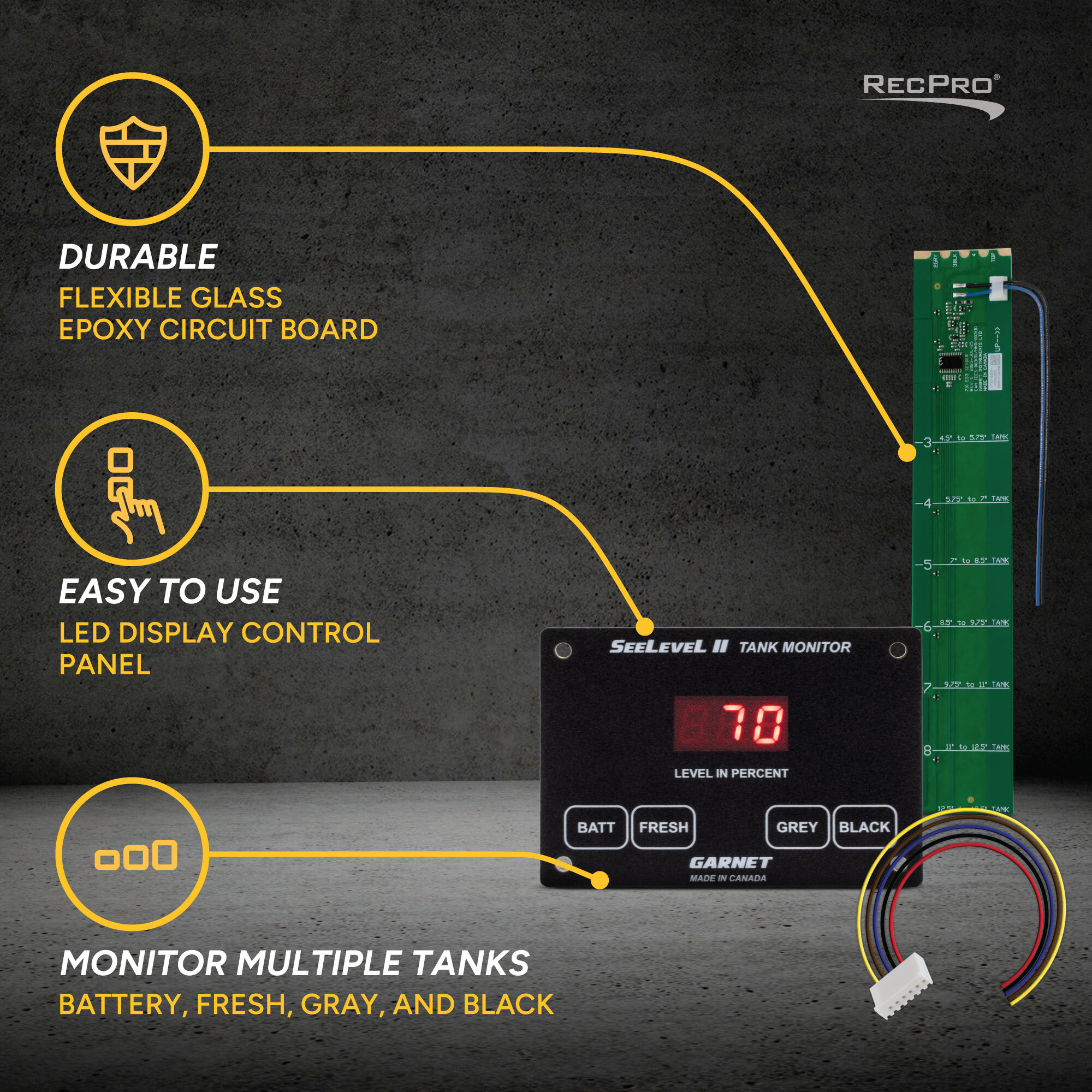

Details:
- Tank monitoring panel
- Can monitor multiple tanks (battery, fresh, gray, and black)
- Compatible with RV-C multiplex systems
- Panel screws to the wall
- LED display
- Includes
- Tank Monitor Display Panel
- Pigtail Harness
- 3 Tank Sensors
- 4 Mounting Screws

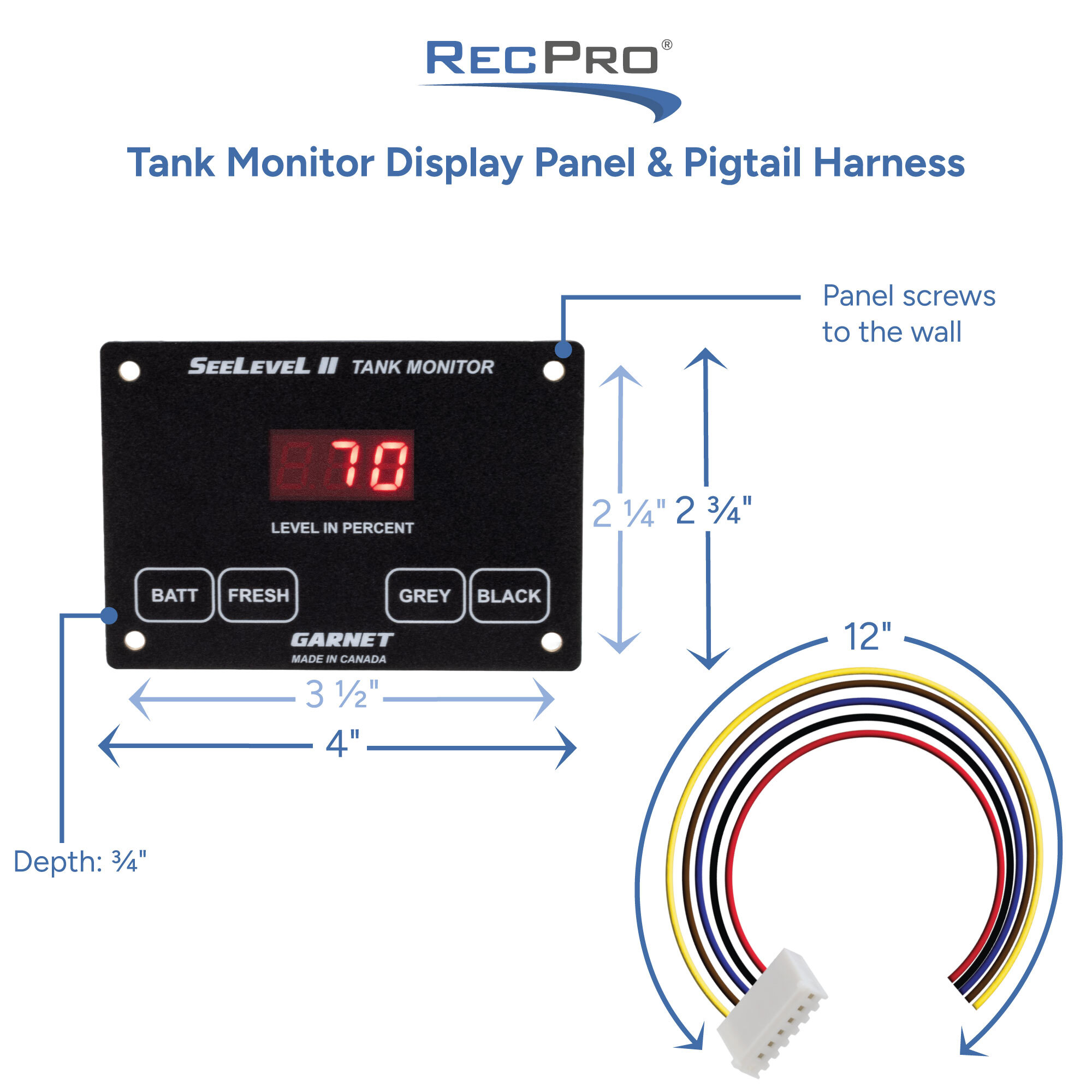

Display Specs:
- Dimensions: 4" W x 2.8" H x 1" D (with pigtail attached)
- Display Power: 12v DC
- Display Current Draw: > 200mA

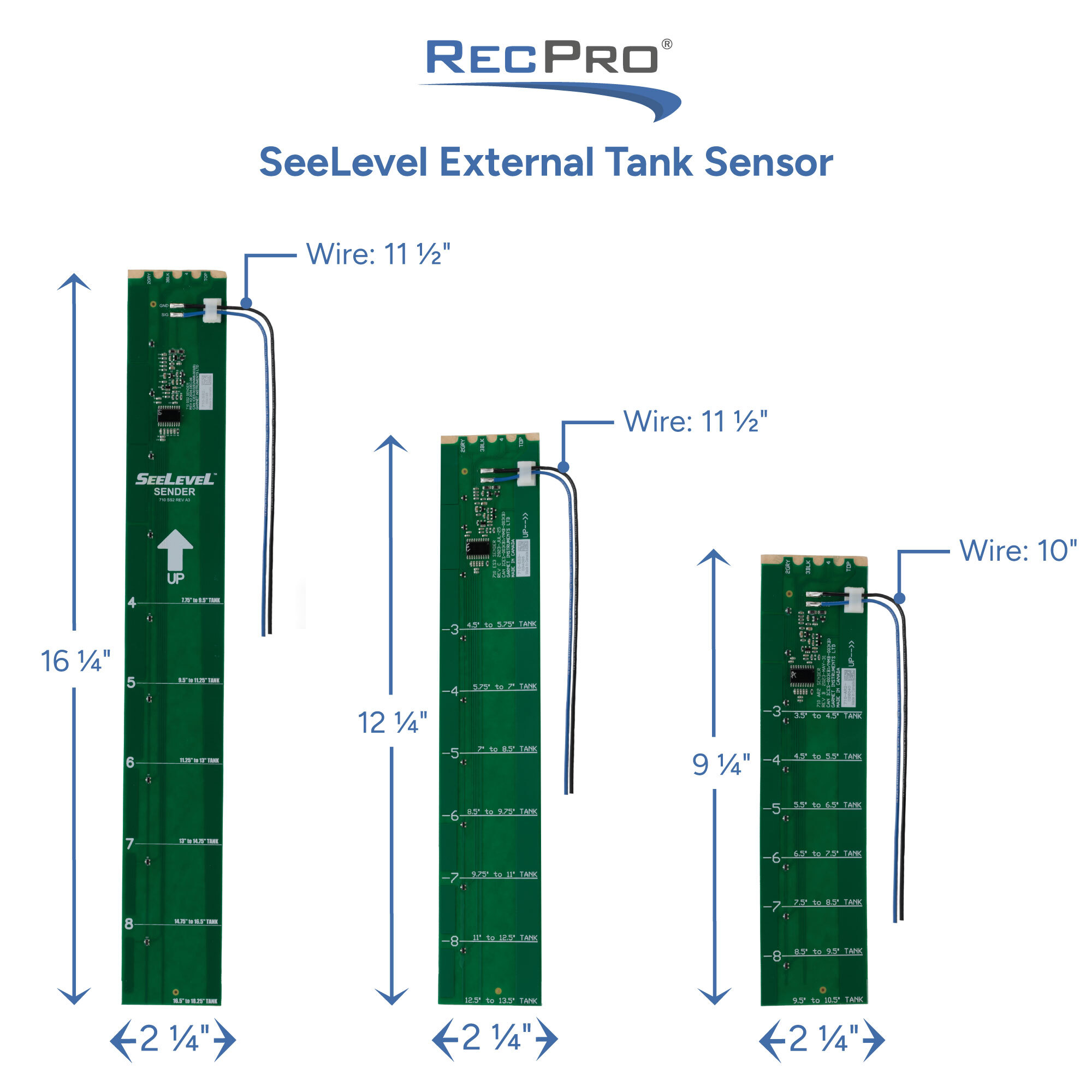

Sensor Information:
- Peel and stick
- Cut to fit
- Stackable (with same sensor model)
- 2 wire connection
- Works on plastic, polyethylene, and fiberglass tanks
- Conformal coated to protect circuit board
- Flexible glass epoxy circuit board
- 710-AR2
- Length: 9”
- Trim Segment Size: 1”
- Minimum Trim Length: 3” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.25” (6mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 3 ½” to 11” tall
- May be stacked with another 710-AR2 sensor for tanks as tall as 20”
- 710-ES3
- Length: 12”
- Trim Segment Size: 1.33”
- Minimum Trim Length: 4” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.33” (8mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 4 ½” to 14” tall
- May be stacked with another 710-ES3 sensor for tanks as tall as 26”
- 710-SS2
- Length: 16”
- Trim Segment Size: 2”
- Minimum Trim Length: 6” (Do not cut shorter)
- Accuracy: +/- 8% or better
- Resolution: 0.44” (11mm)
- Operating Temperature: +32 °F to +140 °F
- Wire Gauge: 18 AWG
- Wire Length: 10 ½”
- Max Tank Wall Thickness: ⅜” (10mm)
- Ideal for tanks measuring 6 ½” to 18” tall
- May be stacked with another 710-SS2 sensor for tanks as tall as 34”
*Note: do not stack different sensor models together
*Sensors do not work with metal tanks
