High Pointe RV Stove Gas Range 17" Tall

Upgrade Your RV Kitchen with a Range from RecPro

Having a small space doesn’t mean you need to compromise on functionality. Some great things come in small packages and this small package is perfect for tight spaces because it is optimized just for that. This HighPointe range may be small, but it provides all the cooking power of a full size range.

This range comes in black, for a sleek modern look to your space. It has both oven and stove top capabilities. The cooktop has 3 burners. The front burner is 8300 BTU and the rear burners are 6800 BTU. The oven is a 1.2 cu. ft. sized oven capable of 7100 BTU. This range runs on propane and 12V DC power. This range also features a glass top cover that helps keep your cooktop clean when not in use.

This range has rough dimensions of 22”W 16”H x 19”D and requires a cutout of  21 3/8”W x 16”H x 17 ¼”D. The max depth of overhead cabinets cannot exceed 13” and the minimum vertical clearance from overhead cabinets is 30”. This range requires minimum distances between the back and side walls. When measured from the rear burner center point, the rear wall must be 8” away and a side wall must be at least 7 ¼” away. The minimum distance between the floor and the bottom of the cutout is 8”.

Don’t let a small space keep you from cooking up whatever you want. Get this compact HighPointe range today and discover the endless culinary possibilities. Shop online on RecPro or contact our Customer Care Team for more information.

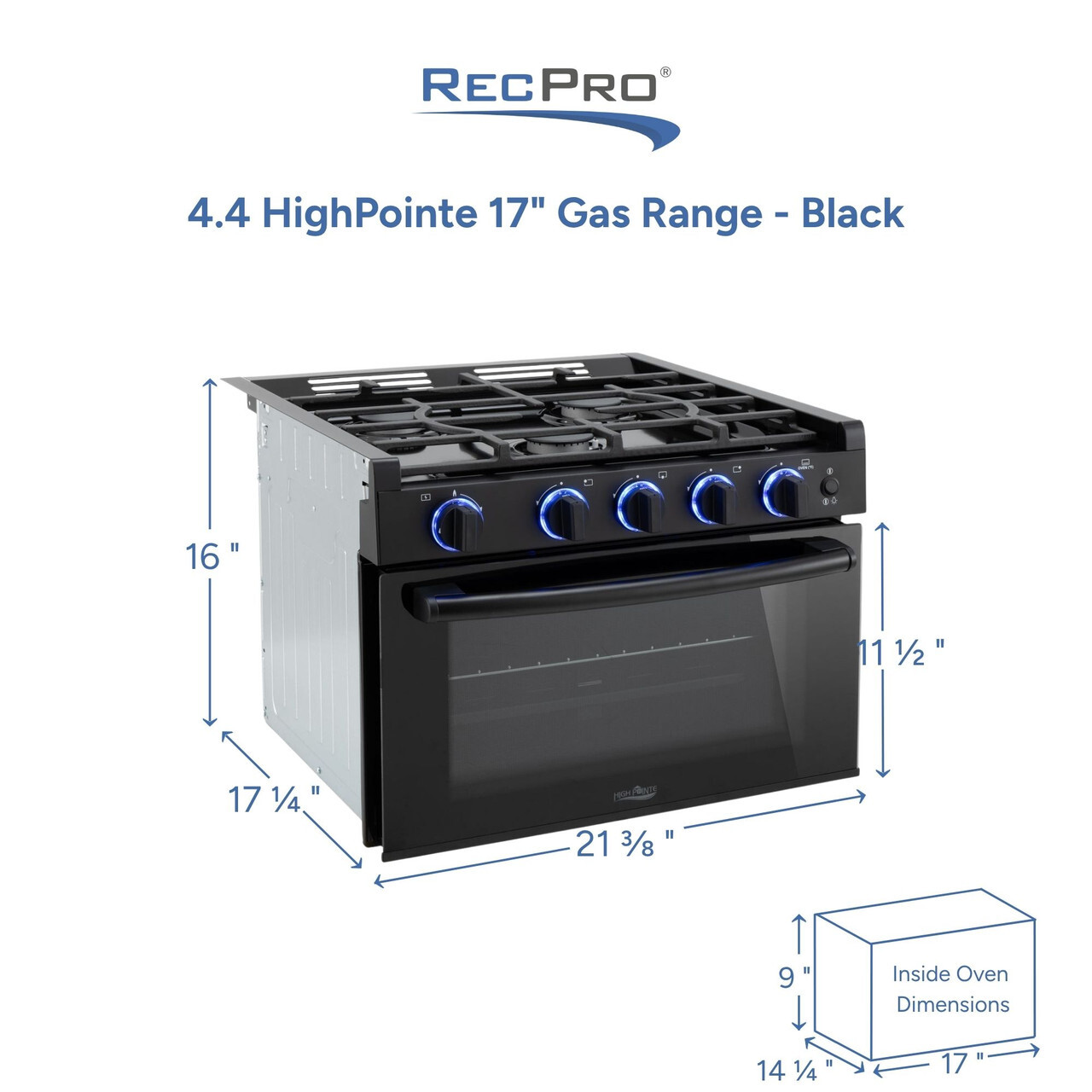

 Measurements:

• Rough overall dimensions: 21 3/8”W x 16”H x 17 ¼”D
• Cutout dimensions: 20 ⅛”W x 16 ⅛”H x 17 ¾”D
• Maximum overhead cabinet depth of 13” unless using a range hood
• Minimum vertical clearance between cooktop and combustible construction above appliance: 30”
• Minimum clearance between the rear burner center and rear wall is 8”
• Minimum clearance between the rear burner center and side wall is 7 ¼”
• Minimum distance between the vehicle/trailer floor and bottom of cutout is 8”

• 12V DC
• Inlet pressure: 10” WC min to 13” WC max
• Front burner: 8300 BTU
• Rear burners: 6800 BTU
• Oven: 7100 BTU
