RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520

0 stars, based on 0 reviews
SKU:
RP-1122
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
  • RV Circuit Breaker 15-20 Amp Double Breaker Siemens Q1520
$25.95
$25.95
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE

Description

Installed breakerWhen you hear that fateful click and your lights and fan turn off, you might find yourself a bit frustrated. While this situation may be a bit annoying, it's there to protect you and your RV from potential electrical damage. The wires and pieces in your electrical system can only stand so much electrical power and the insulation around the wires can melt if the electricity goes past this limit, leading to damage and even electrical fires. The job of the circuit breaker is to make sure this doesn't happen. They monitor the flow of electricity in a circuit and break the flow if it becomes too much for the wires to handle. Because of this important job, it's vital to make sure your RV circuit breakers are in good and working order. If they are older or don't work as well as they should, they should be replaced as soon as possible.

Features

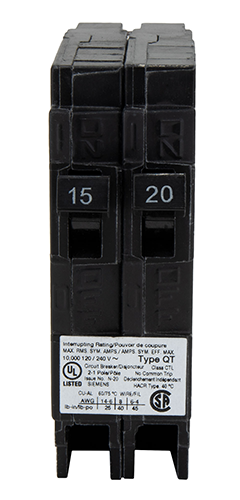

rp-1122-breaker.pngThis 15-20 amp double RV breaker is a twin single-pole type circuit breaker with a 10,000 AIC interrupting rating. It works with 120 volts and is compatible with Siemens PL and ES series load centers, fitting in a 1" space. It is a thermal-magnetic breaker and accepts #14-6 AWG Cu or #14-6 AWG Al wire. HACR SWD rated and UL listed, this RV breaker is a standard trip interruption type.

When it comes to keeping you, your family, and your RV safe from electrical damage, no detail is too small. While the circuit breakers are small, they serve a vital function for your RV's electrical system. Have any questions? Contact us online or call our friendly Customer Care team today!

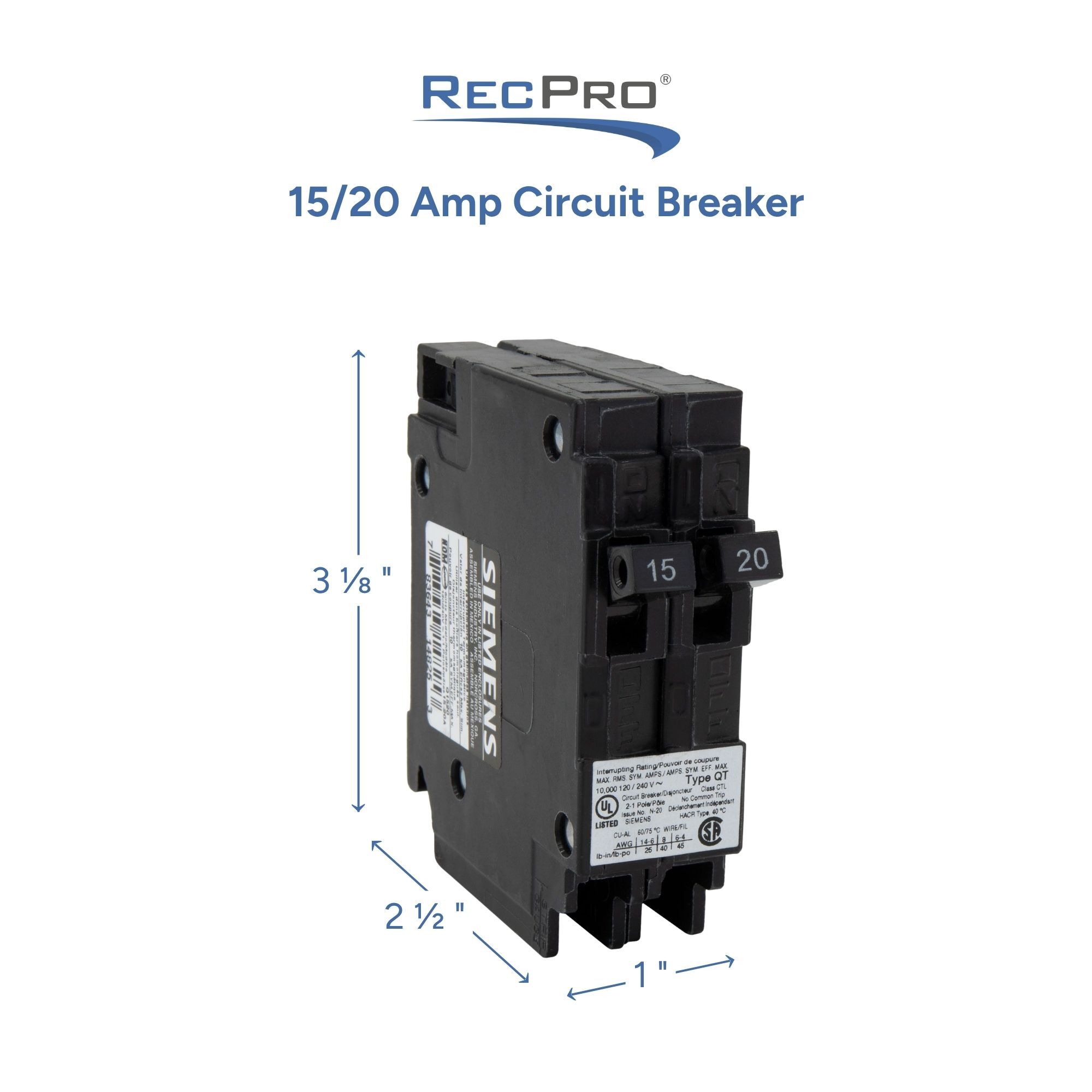

measurements

Details:

  • Dimensions: 3 1/8"H x 1"W x 2 1/2"D
  • Requires 1" space
  • Weight: 4 ounces
  • Color: black
  • Material: plastic
  • Compatible with Siemens PL and ES series load centers
  • Thermal-magnetic
  • Easy plug-in connections in Siemens load centers and meter combos
  • Helps protect home from damaging electrical surges, shock, and voltage spikes
  • HACR SWD rated
  • UL listed
  • Interruption type: standard trip

Technical Data:

  • 15/20 Amp Twin Single-Pole type circuit breaker
  • 120/240V type
  • 10,000 AIC interrupting rating
  • Accepts #14-6 AWG Cu or #14-6 AWG AI wire
