RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515

0 stars, based on 0 reviews
SKU:
RP-1121
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
  • RV Circuit Breaker 15 Amp Double Breaker Siemens Q1515
$25.95
$25.95
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE

Description

Installed breakerIn your RV's electrical system, the circuit breakers serve as the first line of defense against circuit overloads, melted wires, and even electrical fires. An electrical surge from extra appliances doesn't sound like it would be a big problem, however, this increase in electricity could heat the wires past their limit, melting the insulation and damaging the area around it. With all of the things in your RV that rely on the electrical power system, you don't want it to become damaged or impaired. To keep this from happening, the circuit breakers monitor the electrical flow and shut it off if it exceeds the limits of the circuit. While this may seem annoying at the moment, it is saving you from potentially damaging electrical faults. If your circuit breakers are old or are not working properly, it is best to replace them as soon as possible.

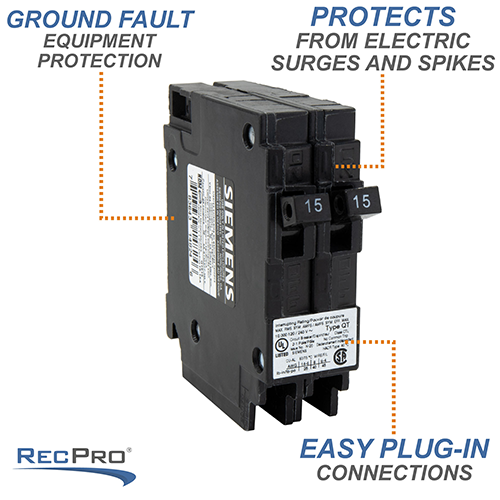

features

breakerThis RV circuit breaker is a 15 amp twin single-pole tandem type circuit breaker for 120 volts and with a 10,000 AIC interrupting rating. It is compatible with Siemens PL and ES series load centers and fits in a 1" space. HACR SWD rated and UL listed, it accepts #14-6 AWG Cu or #14-6 AWG Al wire. This thermal-magnetic breaker is a standard trip interrupter.

To protect you, your family, and your RV from the potential damages of an unchecked electrical system, make sure your circuit breakers are up to date and working well. Small though they may be, they have an important job to do. Have any questions? Contact us online or call our friendly Customer Care team today!

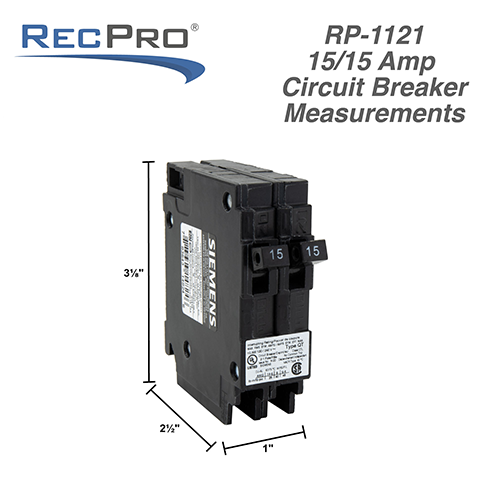

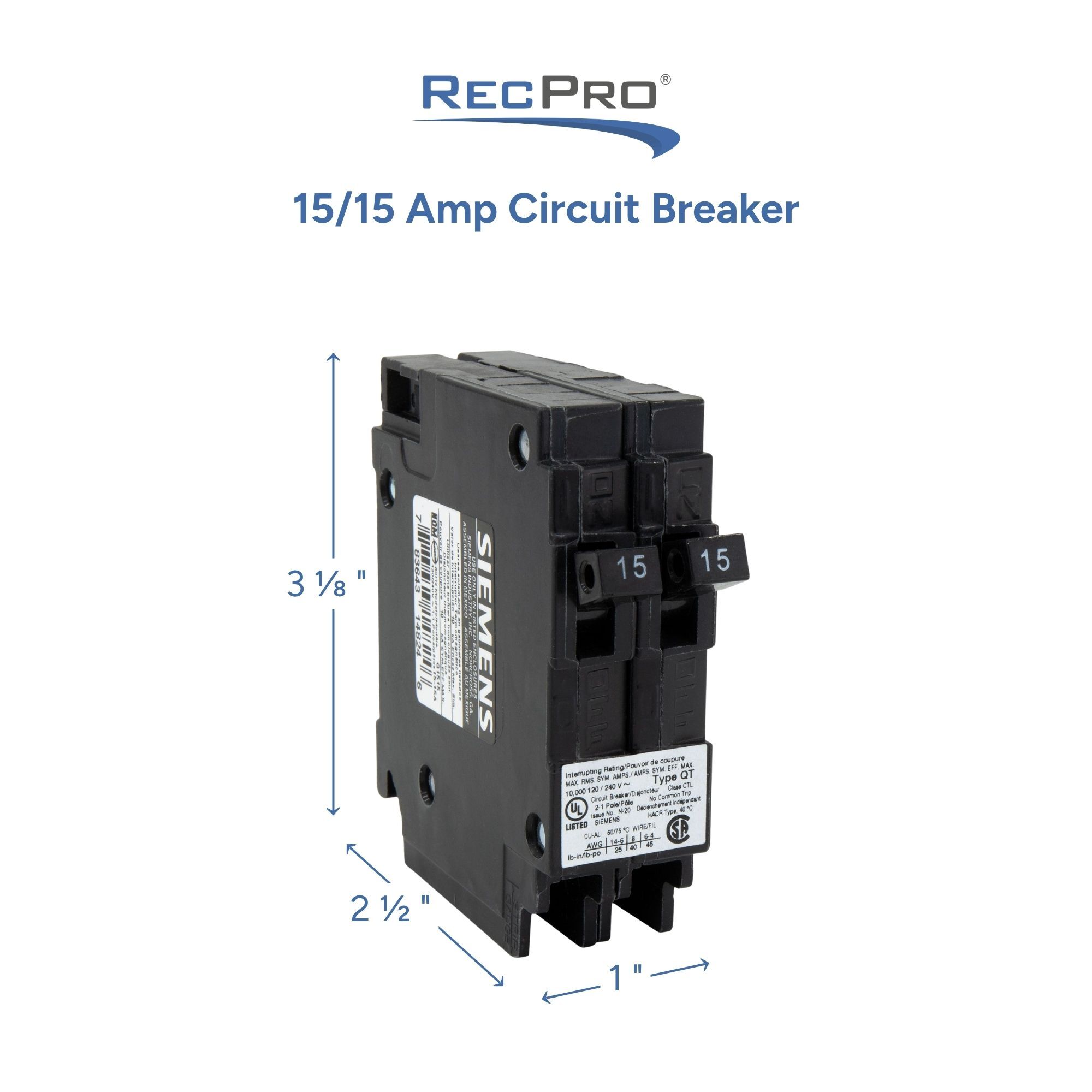

measurements

Details:

  • Dimensions: 3 1/8"H x 1"W x 2 1/2"D
  • Requires 1" space
  • Weight: 4 ounces
  • Color: black
  • Material: plastic
  • Compatible with Siemens PL and ES series load centers
  • Thermal-magnetic
  • Easy plug-in connections in Siemens load centers and meter combos
  • Helps protect home from damaging electrical surges, shock, and voltage spikes
  • HACR SWD rated
  • UL listed
  • Interruption type: standard trip

Technical Data:

  • 15 Amp Twin Single-Pole type circuit breaker
  • 120/240V type
  • 10,000 AIC interrupting rating
  • Accepts #14-6 AWG Cu or #14-6 AWG AI wire
