Description
Circuit breakers are just as vital in your RV electrical system as they are in your stationary home's electrical system. A circuit can only handle so much electrical power and when the electricity exceeds that limit, the circuit breaker shuts down the circuit. This may be an annoying event when it happens. You turn on your vacuum cleaner, you hear that click, and the vacuum, your lights, and your alarm clock all turn off. But annoying as this may be, it's saving you from the risk of electrical damage, fire, and other events. If your circuit breakers are old or no longer work, it's best to replace them immediately.
This RV circuit breaker is a 20 amp single-pole type breaker. It's a 120-volt type and has a 10,000 AIC interrupting rating. It fits in a 1" space and is compatible with Siemens PL and ES series load centers with easy plug-in connections in Siemens load centers and meter combos. This RV breaker is thermal-magnetic and accepts #14-6 AWG Cu or #14-6 Al wire. It is HACR SWD rated and UL listed and has a standard trip interruption type.
For your RV, keeping your systems in order is not only about convenience and usefulness; it's also about safety. In your RV electrical system, the circuit breakers in the breaker panel are the first line of defense against electrical damage, fires, and melted wire. Keep them in line to keep your electrical system on track and you and your RV safe. Have any questions? Contact us online or call our friendly Customer Care team today!
Details:

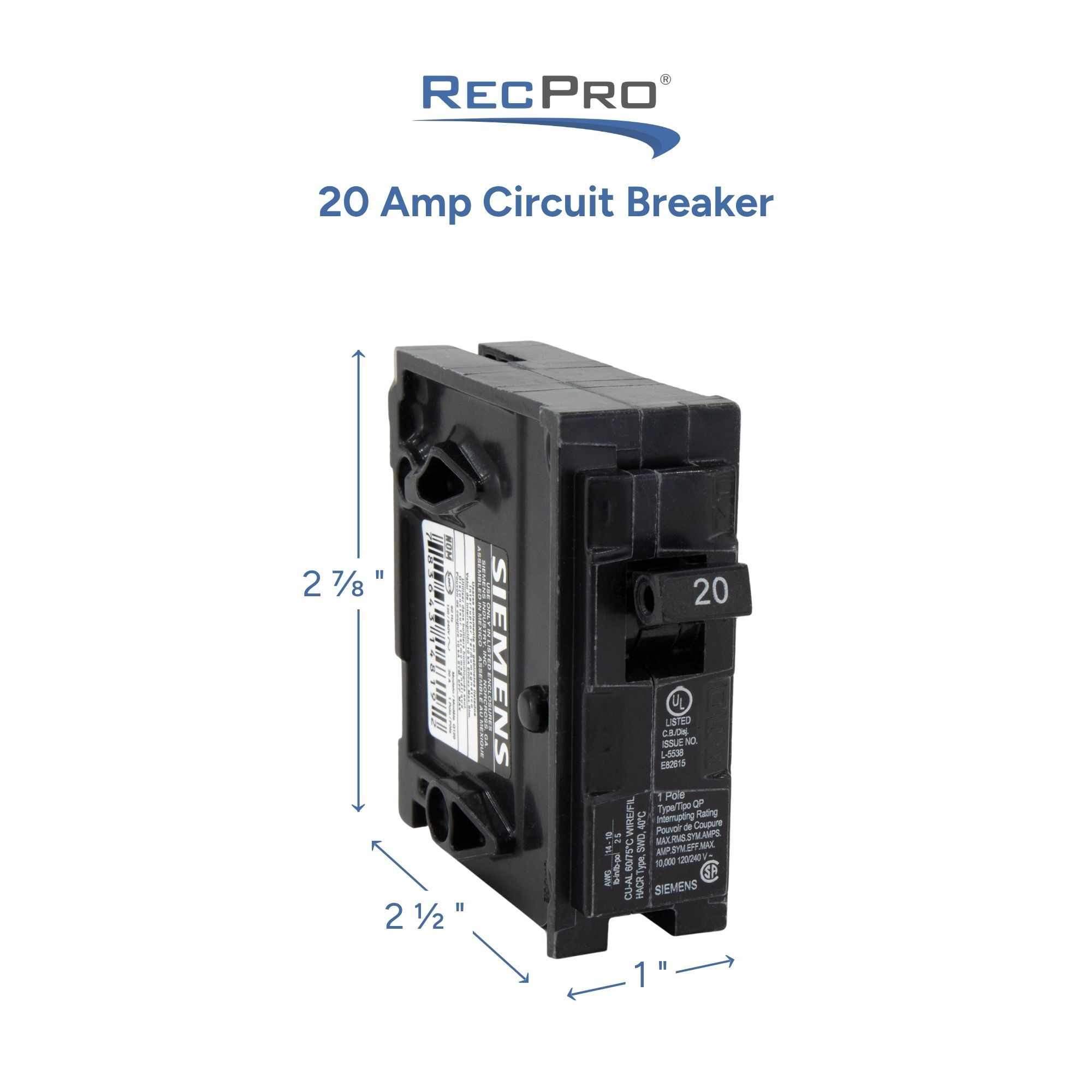

- Dimensions: 2 7/8"H x 1"W x 2 1/2"D
- Requires 1" space
- Weight: 4 ounces
- Color: black
- Material: plastic
- Compatible with Siemens PL and ES series load centers
- Thermal-magnetic
- Easy plug-in connections in Siemens load centers and meter combos
- Helps protect home from damaging electrical surges, shock, and voltage spikes
- HACR SWD rated
- UL listed
- Interruption type: standard trip
Technical Data:
- 20 Amp Single-Pole type circuit breaker
- 120/240V type
- 10,000 AIC interrupting rating
- Accepts #14-6 AWG Cu or #14-6 AWG AI wire
