RV Circuit Breaker 50 Amp Siemens Q250

0 stars, based on 0 reviews
SKU:
RP-1120
  • RV Circuit Breaker 50 Amp Siemens Q250
  • RV Circuit Breaker 50 Amp Siemens Q250
  • RV Circuit Breaker 50 Amp Siemens Q250
  • RV Circuit Breaker 50 Amp Siemens Q250
  • RV Circuit Breaker 50 Amp Siemens Q250
  • RV Circuit Breaker 50 Amp Siemens Q250
$25.95
$25.95
free shipping iconFREE SHIPPING guarantee icon100% GUARANTEE

Description

Installed breakerIn your RV, many things rely on the electrical system. Your lights, appliances, outlets, and more run on electricity and depend on the electrical system working well. This system is only able to handle so much electricity, though. While the insulation on the wires keeps your system safe from this electrical power, if there is too much electricity, it can melt the insulation and cause electrical damage to the surrounding areas, even to the point of an electrical fire. Circuit breakers prevent this from happening. They monitor the electrical flow and stop it if it exceeds the limit. While this click may be annoying at the moment, causing you to check the breaker box and adjust the items using that specific circuit, it's a vital function of a safely functioning system. If your RV circuit breaker is old or not working properly, it's important to replace it as soon as possible.

features

This RV circuit breaker is a 50 amp double-pole type 240 volt type circuit breaker and has a 10,000 AIC interrupting rating. It is compatible with Siemens PL and ES series load centers and easily plugs in, fitting in a 2" space.breaker This breaker is thermal-magnetic and accepts #8-6 AWG Cu or #8-4 AWG Al wire. HACR SWD rated and UL listed, it has a standard trip interruption type.

In your RV's electrical system, the circuit breakers are the first line of defense against electrical damage, which is why it's important to keep them up to date and in good shape. Have any questions? Contact us online or call our friendly Customer Care team today!

measurements

Details:

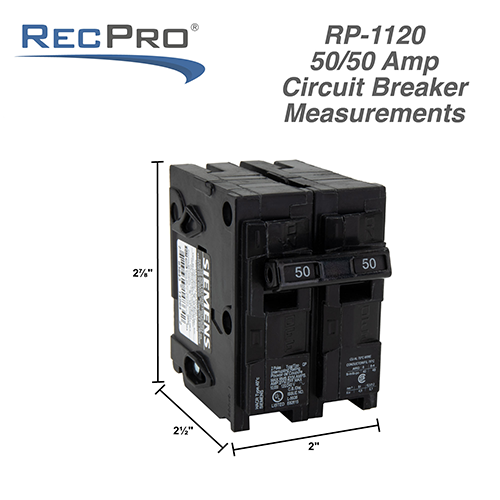

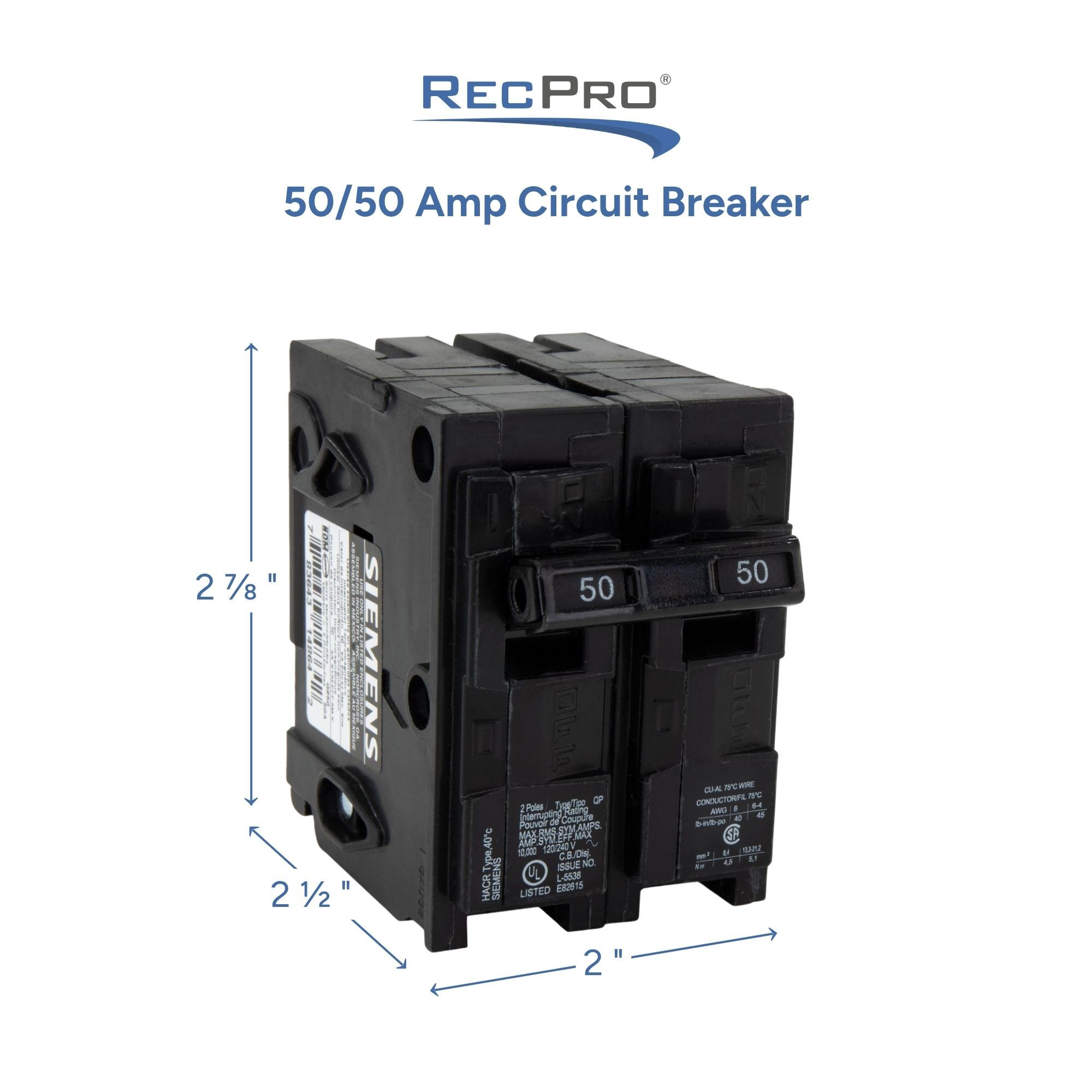

  • Dimensions: 2 7/8"H x 2"W x 2 1/2"D
  • Requires 2" space
  • Weight: 8 ounces
  • Color: black
  • Material: plastic
  • Compatible with Siemens PL and ES series load centers
  • Thermal-magnetic
  • Easy plug-in connections in Siemens load centers and meter combos
  • Helps protect home from damaging electrical surges, shock, and voltage spikes
  • HACR SWD rated
  • UL listed
  • Interruption type: standard trip

Technical Data:

  • 50 Amp Double-Pole type circuit breaker
  • 120/240V type
  • 10,000 AIC interrupting rating
  • Accepts #8-#6 AWG Cu or #8-#4 AWG AI wire
