RecPro®

RV Multifunction City Water Fill Panel Nautilus P3 10" x 15"

0 stars, based on 0 reviews
SKU:
RP-1172-P3-WH
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3 10" x 15"
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
  • RV Multifunction City Water Fill Panel Nautilus P3
$269.95
$269.95
Free ShippingFREE SHIPPING Returns Icon100% GUARANTEE

Instructions INSTALLATION User Guide USER GUIDE

Description

There are a ton of things that your RV does on the first day at camp. You have to connect the water, power, cable, sewage, and more. And how about those things that you do while you’re there? Turning on the pump or getting the water to your fixtures rather than to your fresh water tank can seem like a hassle when there isn’t one place you can do it from. Well, with the Nautilus 3 panel, you have just that place. You can plug in your cable cord, fill up your fresh water tank, and control your RV water system, all from one panel.

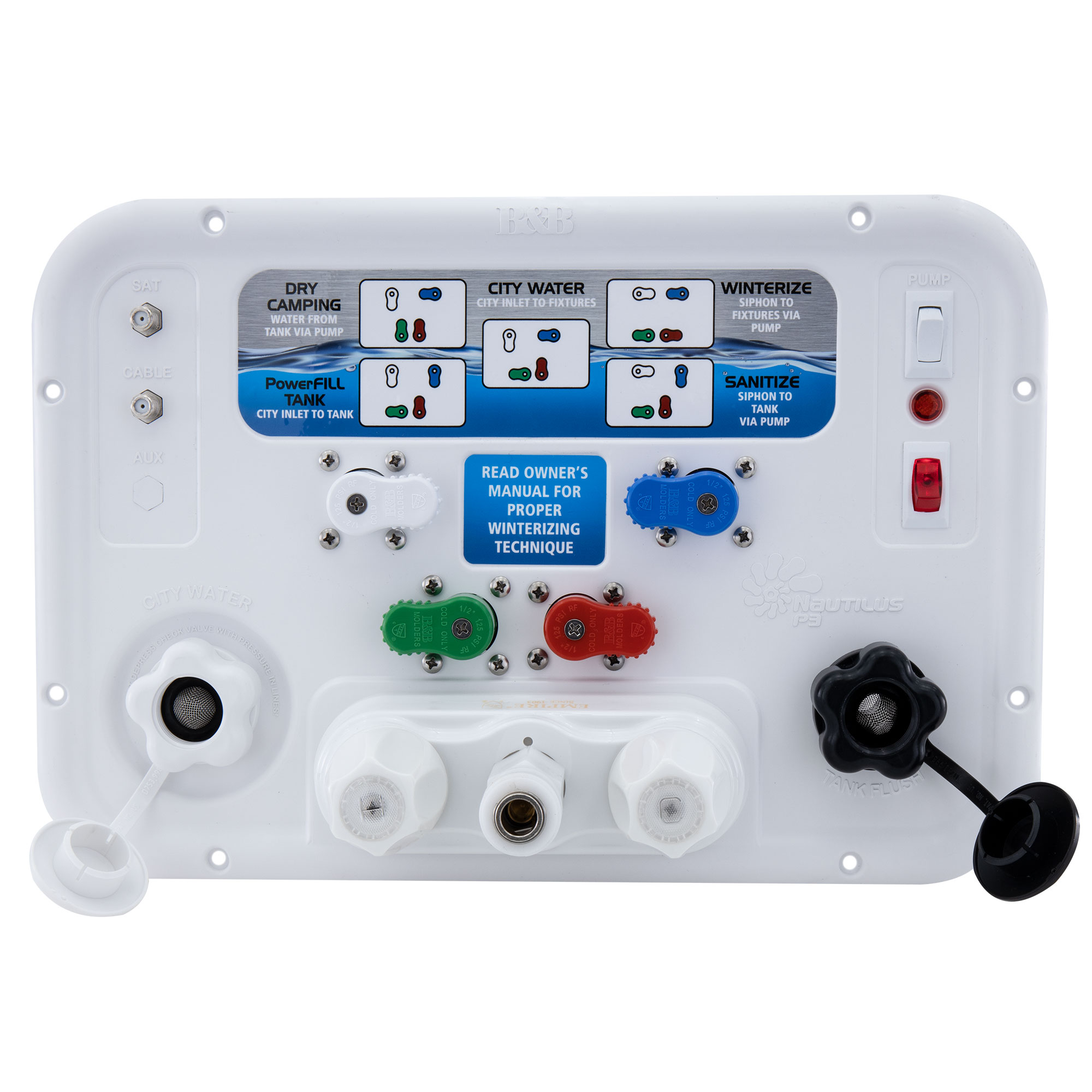

Nautilus P2.5 RV Water Management Board


Click here to view the Installation Guide - Click here to view the User Manual

This RV control board serves many different functions:

  • It serves as a port to power-fill your fresh water tank. Quickly filling your tank, this port replaces the city water fill or gravity fill hatch.
  • With the water pump button located on the panel face, you can use the pump to supply your water fixtures with pressurized water from your fresh water tank.
  • Through the siphon fill or sanitize option, you can use the pump to siphon fill or sanitize your fresh water tank from a bucket. With the pressure from the pump, you can fill the tank with either liquid quickly and without the help of outside pressure.
  • Through the water fill inlet, you can connect to the city water at your campsite to supply water to your water fixtures.
  • Through the winterizing function, you can get your RV plumbing system ready for winter. The panel also allows you to bypass your hot water heater when winterizing to avoid water heater damage.
  • The tank flush function connects to a breaker/check valve so that you can flush out your black water tank, preventing sewage buildup and lessening any potential smells.
  • The hot/cold faucet on the front of the panel helps you to rinse off shoes, tools, and other items outside of your rig.
  • There are three connector ports for satellite, cable, and auxiliary cables available for use.

* User instructions included. Read before installation and usage*

*Harness Kit does NOT come pre-assembled*

To install this panel, you will need a cutout space of 13 1/8” by 81/8”. The panel itself measures 10” high by 15” wide by 7” deep. All of the hose connections are 1/2”. This panel is white in color and made in the United States. Have any questions? Contact us online or call our friendly Customer Care team today!

Features:

  • Water management board
  • Serves as a control hub for multiple functions throughout your RV water system
  • Power fill your fresh water tank for dry camping
  • Use your pump to supply water to fixtures from fresh water tank
  • Use your pump to siphon fill or sanitize your fresh water tank from a bucket
  • Connect to city water at the camping site to supply water to fixtures
  • Winterize your plumbing lines and fixtures
  • Bypass hot water heater when winterizing to avoid water heater damage
  • Rinse black tank to help control odors and prevent sewage buildup
  • Rinse off items outside RV with a hot/cold faucet
  • Connections for SAT, cable, and AUX cables
  • Made in America


* User instructions included. Read before installation and usage*

Details:

  • Cutout size: 13 1/8” x 8 1/8”
  • All hose connections are 1/2” NPT
  • Dimensions: 10”H x 15”W x 7”D
  • Color: White
  • Made in USA

Nautilus Install kit includes all of the necessary hardware:

  • 5 Feet of Blue Pex Hose
  • 1 Foot of Red Pex Hose
  • 7x 1/2" Straight swivel adapter
  • 5x 1/2" Barb Tee Fittings
  • 32x Hose Clamps
  • 5x 1/2" Barb Elbow
  • 6x 1/2" Swivel Elbow
