Tuson Towable RV Tire Pressure Monitoring System TPMS

When driving a big rig, you should know that safety comes first. Unfortunately, many people who own and operate RVs, campers, trailers, and other towables are surprisingly lax when it comes to their safety, which can end up being dangerous and costly! One effortless way to stay safer and more prepared for the road ahead is by keeping track of the condition of your tires.

Big Convenience - Small Package

A Tire Pressure Monitoring System such as this packs a whole lot of punch in a bite-sized package and can have a noticeable impact on the convenience and safety of your future adventures. With a TPMS, you will not need to manually check each tire with a pressure gauge and thermometer before, and after each destination you travel to. Instead, you will be able to keep track of the condition of your tires before, during, and after traveling with nothing more than a quick glance at the display!

Included in this 6-tire TPMS kit are six internal wireless sensors, six interchangeable valve stems, one sensor signal repeater, 1 TPMS receiver display, one power adapter, five cable ties, two hex screws, one sticker sheet, one manual, one suction cup mount, one quick installation card, 1 thank you card and one registration card for a 2-year Limited Warranty.

Stunning Sensors

The sensors in this Tire Pressure Monitoring System are pretty impressive little gadgets. These potted wireless TPMS sensors are installed internally on your wheel by securing to the valve stem and feature motion activation technology to save on battery life. The battery life of these sensors is estimated to last around five years before the sensor will need to be replaced. However, internal sensors such as these transmit more accurate data every minute at a frequency of 433mHz than external sensors. They do not need to be removed to put more air in your tire.

These Tire Pressure Monitoring System Sensors are not only potted for extra protection but are also constructed using dense plastic for incredible durability. Each sensor in this kit has a pressure monitoring range of 0 to 203 PSI combined with a temperature monitoring range of -40℉(-40℃) to 257℉ (125℃) and only weighs one ounce! This TPMS kit comes with six sensors. Any additional sensors must be purchased separately.

Stronger Signals With A Signal Repeater

Having tire pressure sensors does not mean much if their signals have trouble getting to your display! Thankfully, this TPMS kit has you and your large rig covered. The signal repeater is designed to enhance and strengthen the signals of your TPMS sensors so that they can reach the TPMS display with greater ease.

The signal repeater has a cable length of 90” and uses a two-wire connection to function - one black wire and one red wire with a 2 amp fuse. The signal repeater must be connected to a constantly running 12v to 24v DC power source to function and transmits at a frequency of 433mHz, just like the sensors. Also, like the sensors, the signal repeater is motion-activated, so it will not constantly drain power from your battery. The signal repeater is also very durable, allowing you to install it inside or outside your rig using the attached adhesive patch or the included screws. The signal repeater weighs in at only 9 ounces and measures 3.5” x 3.8” x 0.9”, so it will not take much space.

Interchangeable Valve Stems

These metal interchangeable valve stems are what your Tire Pressure Monitoring System sensors connect to. They are compatible with steel and aluminum wheels alike. They are designed to fit through 0.453” or 0.625” diameter wheel valve holes, making them quite versatile. The nut and the valve stem are built using anodized aluminum metal, while the washer is made using nickel-coated steel, offering protection from rusting and corrosion.

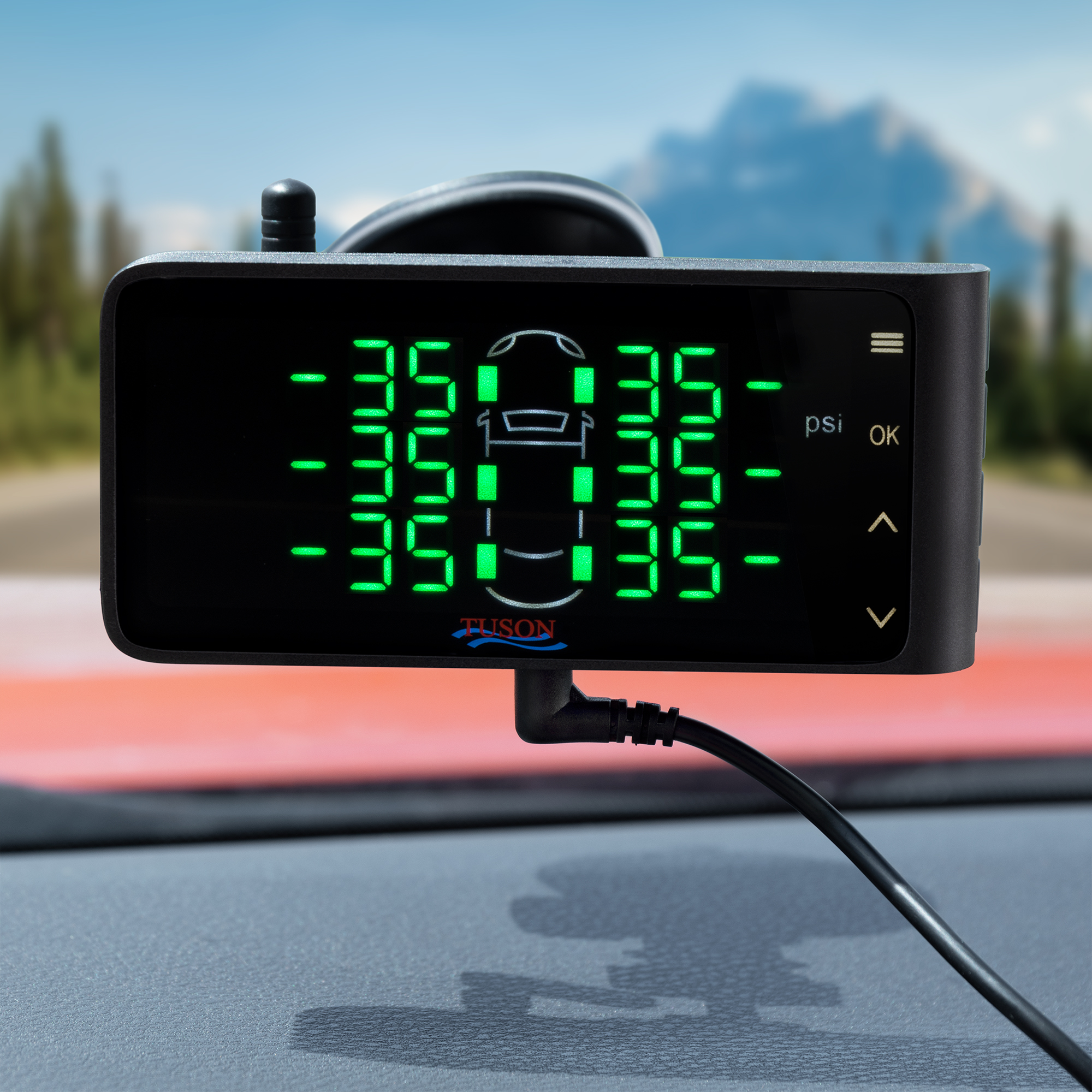

Easy-To-See Info With The TPMS Receiver Display

The Tire Pressure Monitoring System receiver display lets you view all of the data and information provided by the TPMS sensors regarding tire pressure, temper, and trailer battery. Depending on the number of sensors you are using, the TPMS receiver display can monitor up to 10 wheels or three vehicle configurations. The TPMS receiver display can display the pressure of your tires in PSI, kPa, or Bar, while the temperature may be displayed in either Fahrenheit or Celsius.

As you travel, the display will automatically cycle between tire pressure, tire temperature, and trailer battery displays, so you will not need to change the channel constantly. The TPMS receiver display features customizable alerts for pressure, temperature, and trailer battery, allowing you to set your preferred thresholds for each. When an alert threshold is reached, the display will provide visual and auditory alarms to alert you of an issue.

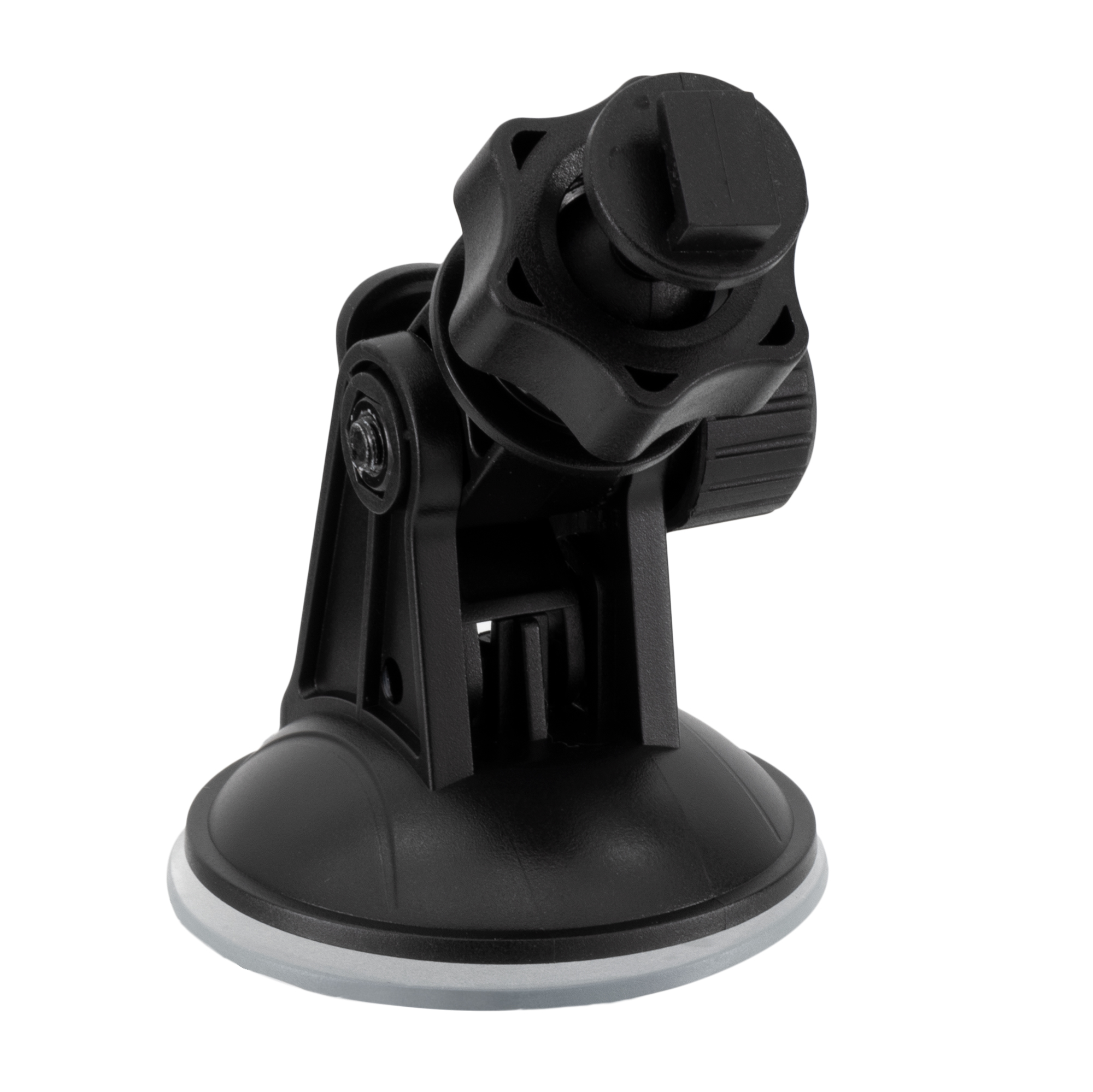

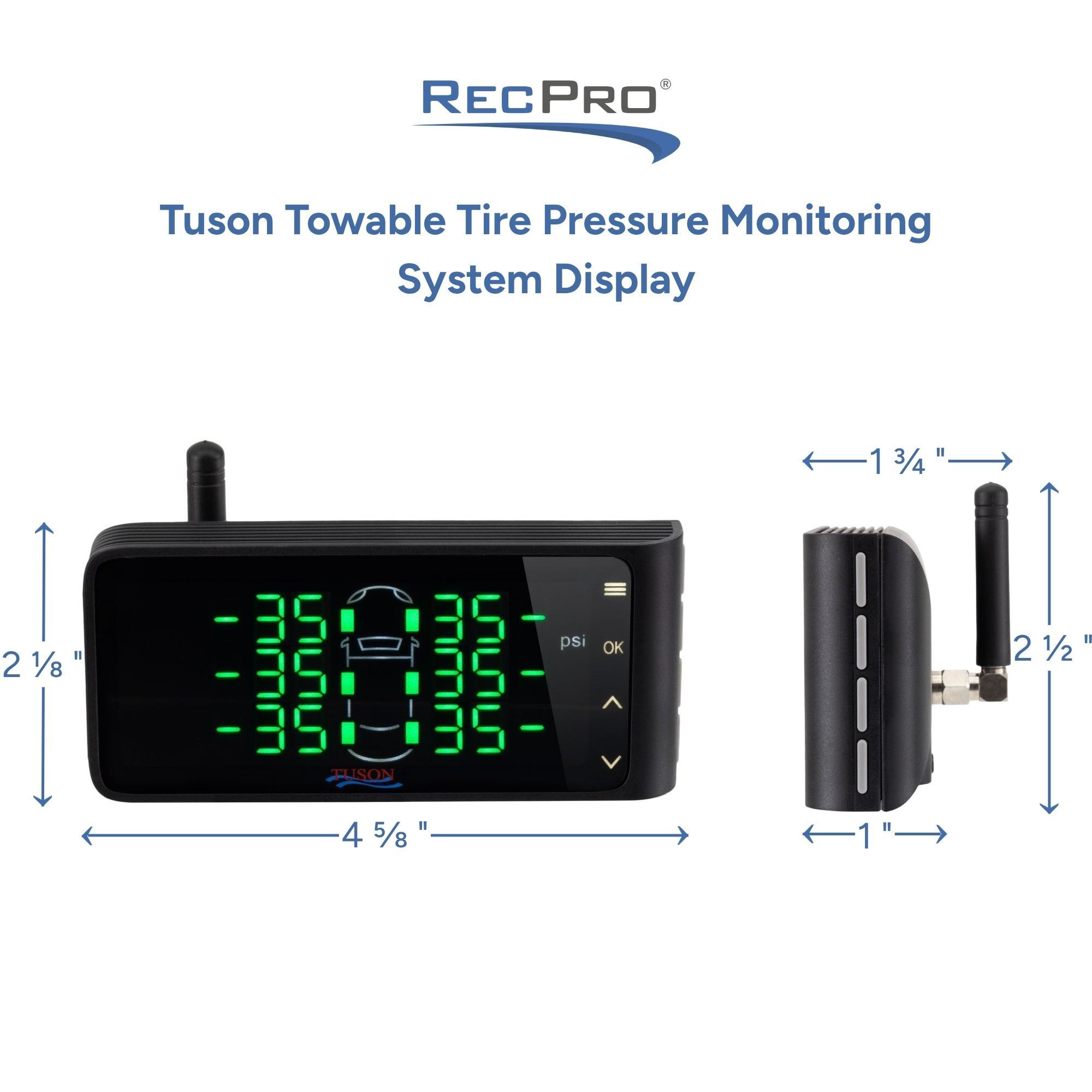

The TPMS display includes a handy suction cup mount that allows you to mount the display to a flat, non-porous surface and a 12v-24v DC power adapter used to power the display. The TPMS display offers a monitored pressure range of 0 to 203 PSI and a monitored temperature range of -40℉(-40℃) to 257℉ (125℃), measures 4.5” x 2.1” x 1” and weighs a mere 3.4 ounces.
