SeeLevel Tank Monitor Panel for Fresh and Black Tanks

Get Precision Accuracy With A SeeLevel Tank Monitor Kit

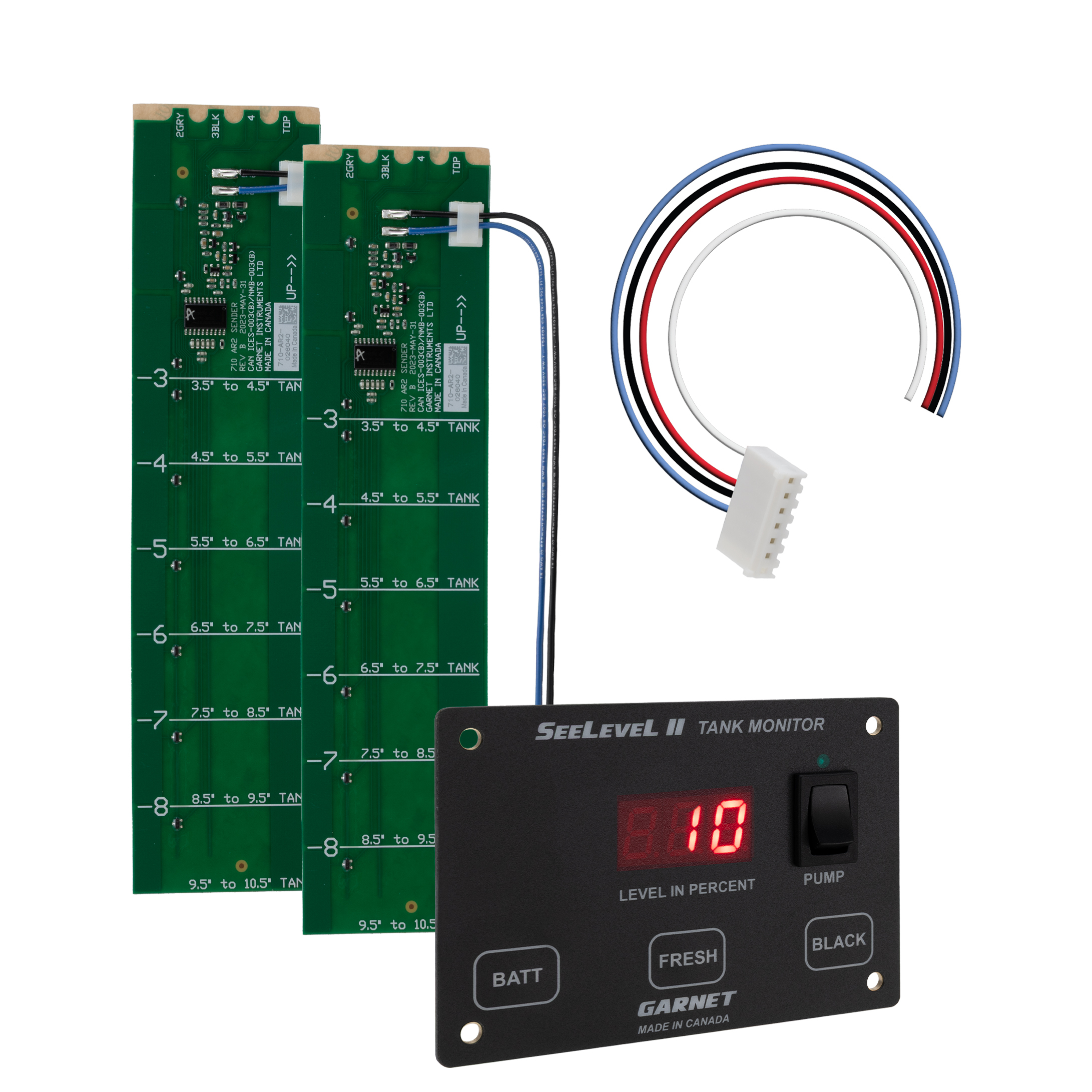

This product is a complete SeeLevel Tank Monitor Kit. This kit comes with the tank monitor display panel, a pigtail wiring harness, four mounting screws, and two SeeLevel tank sensors. This SeeLevel tank monitor system accurately monitors your battery voltage and the levels of your fresh and black water tanks.

Water tank information is shown on the LED display of the tank monitor panel, which shows the levels of your water tanks as a percentage with an accuracy of +/- 8%. This is far more precise than other tank monitor systems on the market, which typically display tank general tank levels as F (full), ⅔, ⅓, and E (empty). With this tank monitor system, you can even monitor the water levels of your tanks in real time as you fill or drain them.

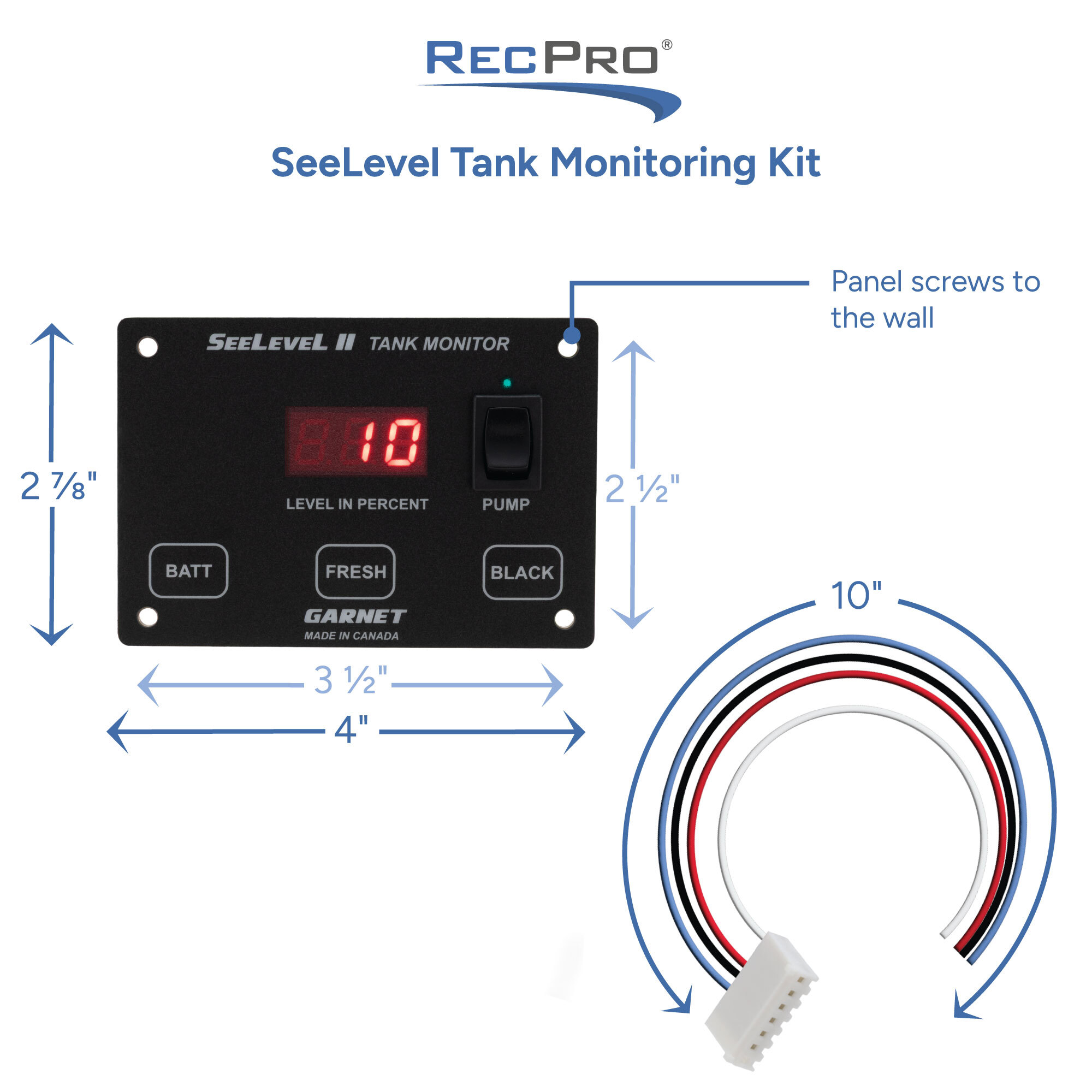

The tank monitor panel is designed to easily mount to your wall using the four included mounting screws. The tank monitor panel measures 4" W x 2.8" H x 1" D (with pigtail attached), and runs on 12v DC power, with a minuscule amp draw of less than 200mA. The tank monitor panel also features a 3-way pump switch with a maximum current rating of 10 amps. If you need more than 10 amps for your pump, then you’ll need to use a relay. In either case, you should also ensure that your pump wiring is equipped with a 10-amp fuse.

SeeLevel Tank Sensors

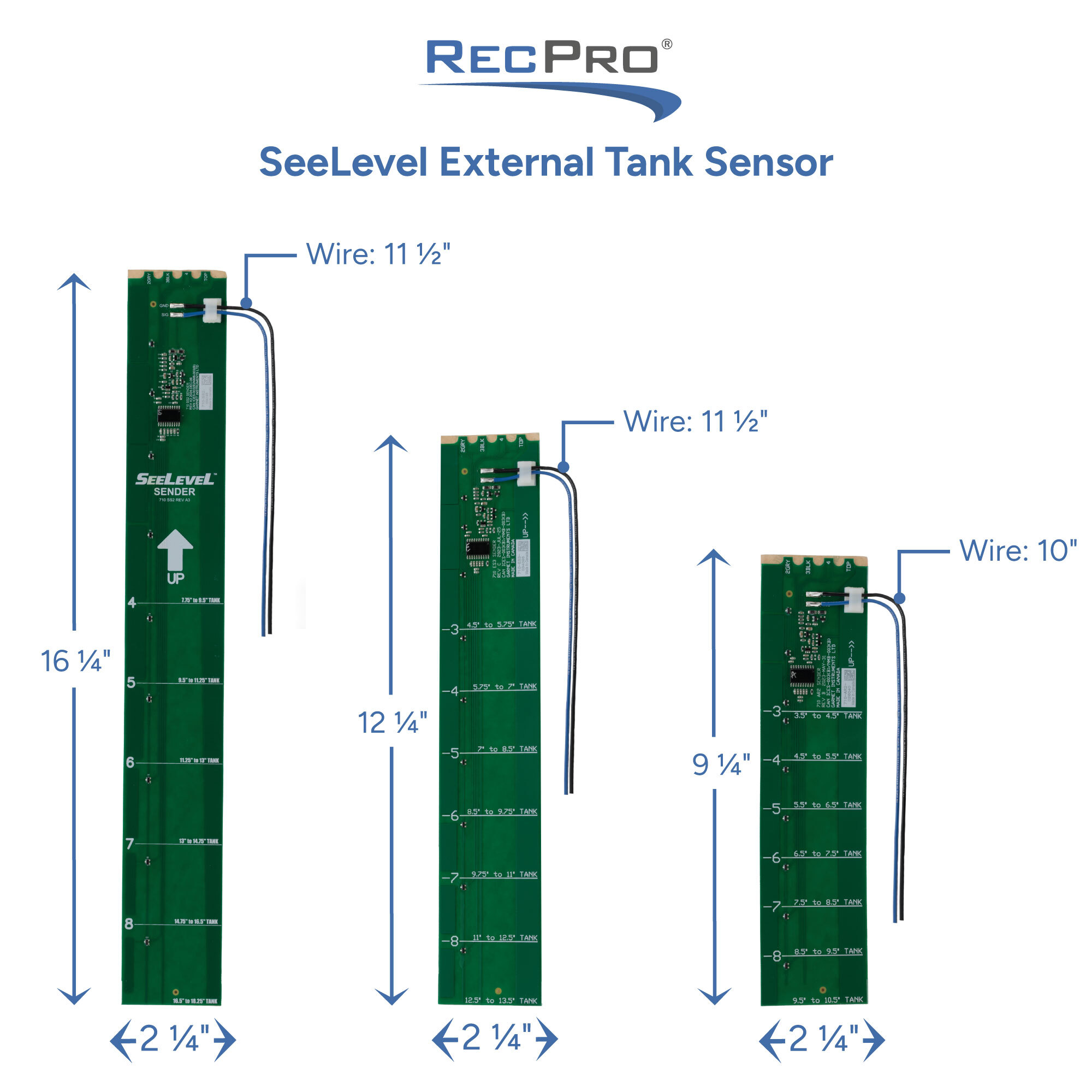

The tank sensors are available in three size options: the 9” long 710-AR2 model, the 12” long 710-ES3 model, and the 16” long 710-SS2 model. These sensors are made out of a flexible glass epoxy printed circuit board, which allows them to bend to conform to the shape of your water tank. They are also given a conformal coating, which protects the circuit boards from moisture, dust, chemicals, and extreme temperatures. These SeeLevel tank sensors offer an accuracy of +/- 8% or better, and feature a simple two-wire connection. The tank sensors can even be connected to the same wire.

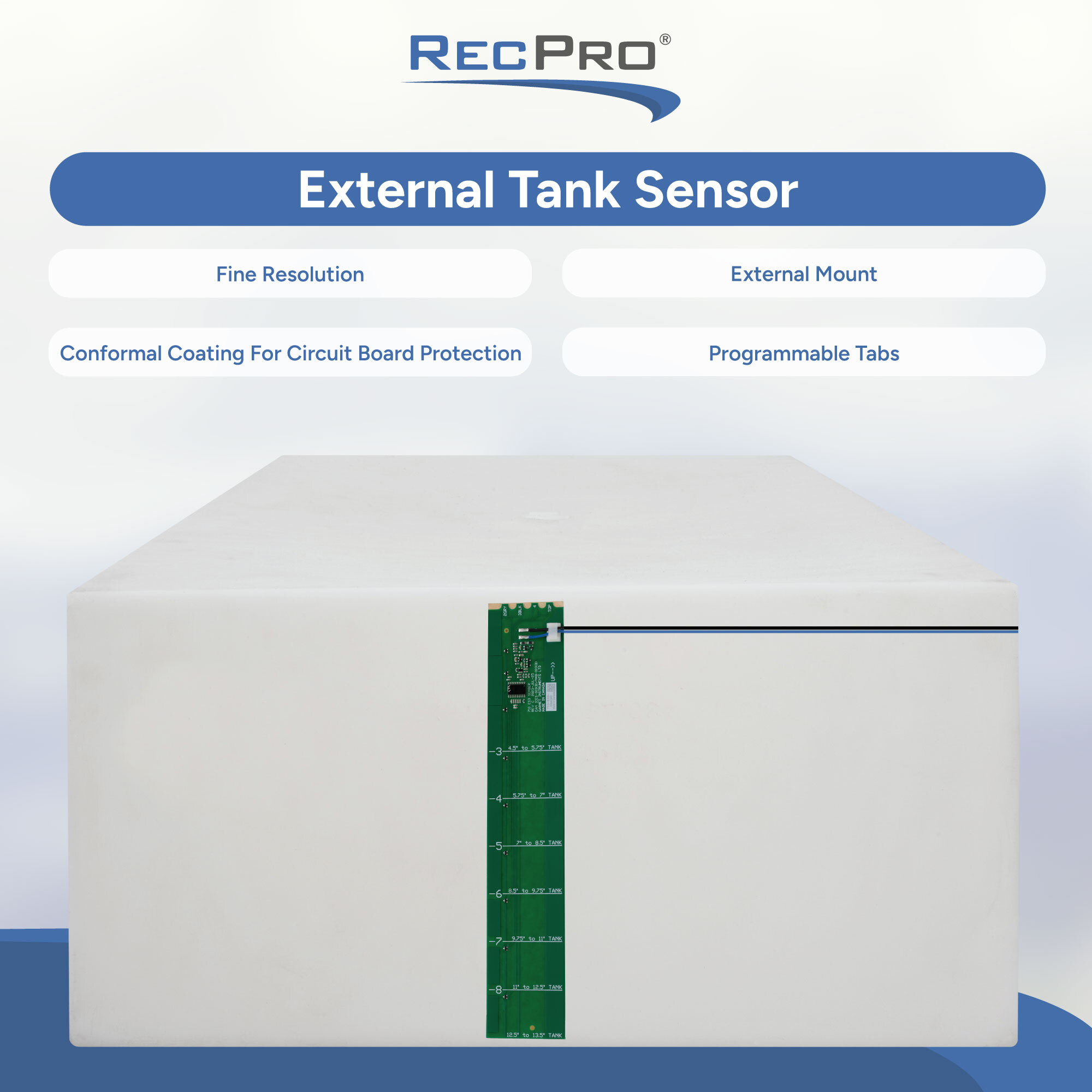

These tank sensors are compatible with most plastic, polyethylene, and fiberglass water tanks and are built with a 3M 300LSE adhesive lamination on the back for external mounting. That means that you can simply peel and stick these sensors onto your water tanks without needing to drill any holes. However, these sensors will not work on metal tanks.

These tank sensors feature programmable tabs that can be cut to identify which tank the sensor is on. Additionally, these tank sensors can be cut to fit smaller water tanks or stacked for larger tanks. Keep in mind that you should not mix different sensor models together when stacking them, and should only use two of the same tank sensor model. For further details on each sensor model, refer to the “Sensor Options” segment in the details panel.

Keeping track of the water levels in your tanks is vital when you’re living the RV lifestyle. So make sure you can monitor your water tanks with accuracy and precision using this SeeLevel Tank Monitor Kit. Use our website to order yours today, or chat with our Customer Care Team if you need further assistance.
