Description

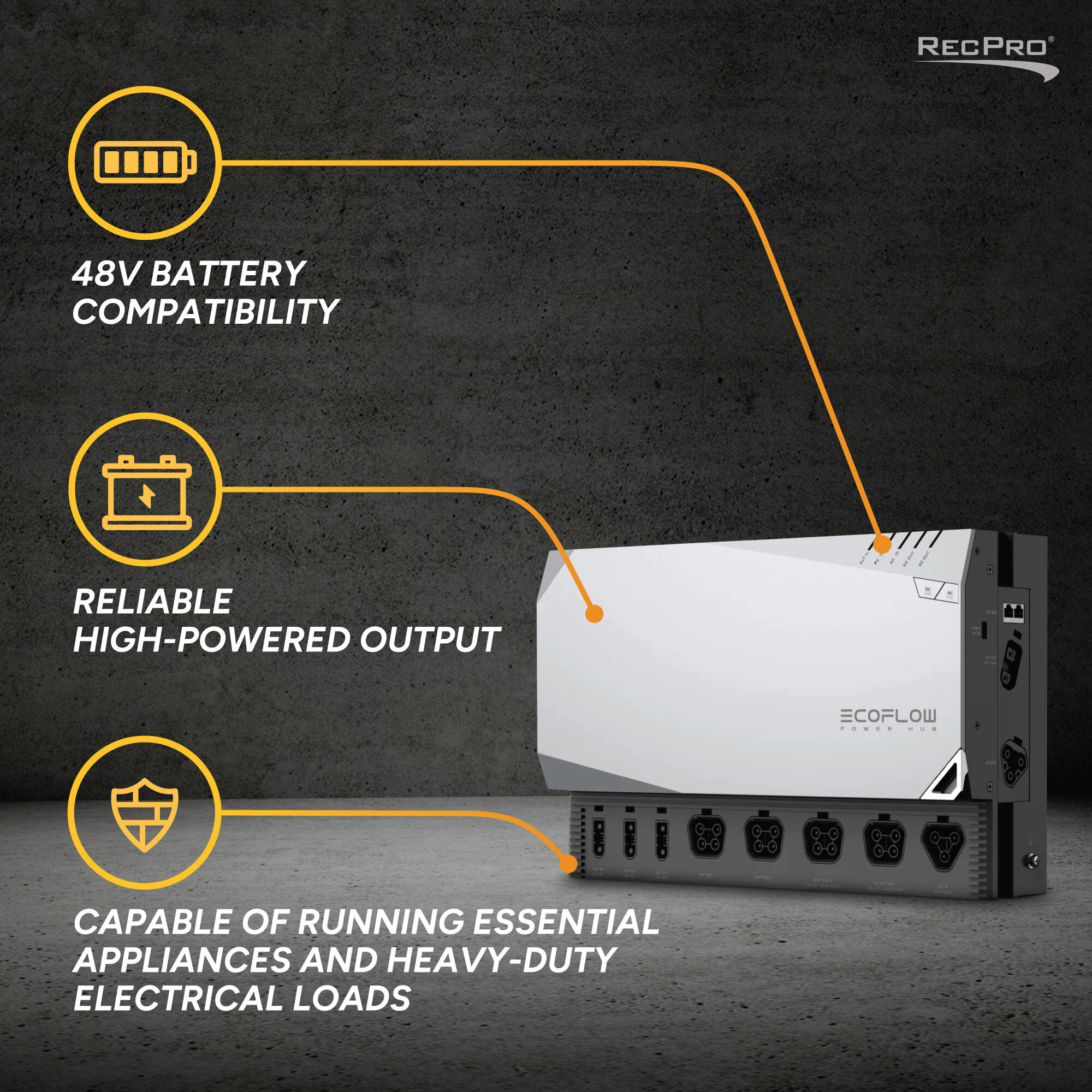

Manage Power The Smart Way With The EcoFlow Power Hub
It’s no secret that the electrical system of an RV can be complicated, with 48V and off-grid systems in particular being a bit confusing or difficult to manage. Thankfully, RecPro can help you make your off-grid power system more efficient and easy to manage with the EcoFlow 5kVA Power Hub!
The EcoFlow 5kVA Power Hub acts as the central distribution point of the off-grid power system of your RV, trailer, or camper van, offering incredible versatility to meet your electrical needs. It is designed to provide a reliable and consistent high-powered output that is more than capable of running the essential appliances and taking on the heavy-duty electrical loads of your RV or camper van, making it a perfect off-grid power solution.
You can connect up to 3 stackable 48V batteries to the EcoFlow Power Hub, which allows you to charge those batteries through multiple energy inputs such as solar, generator, and shore power. This ensures that you almost always have a way to keep your batteries charged and your system powered. The EcoFlow Power Hub comes with installation hardware and features a “plug-and-play” design that makes it quick and easy to install without needing to worry about extensive or complicated wiring.

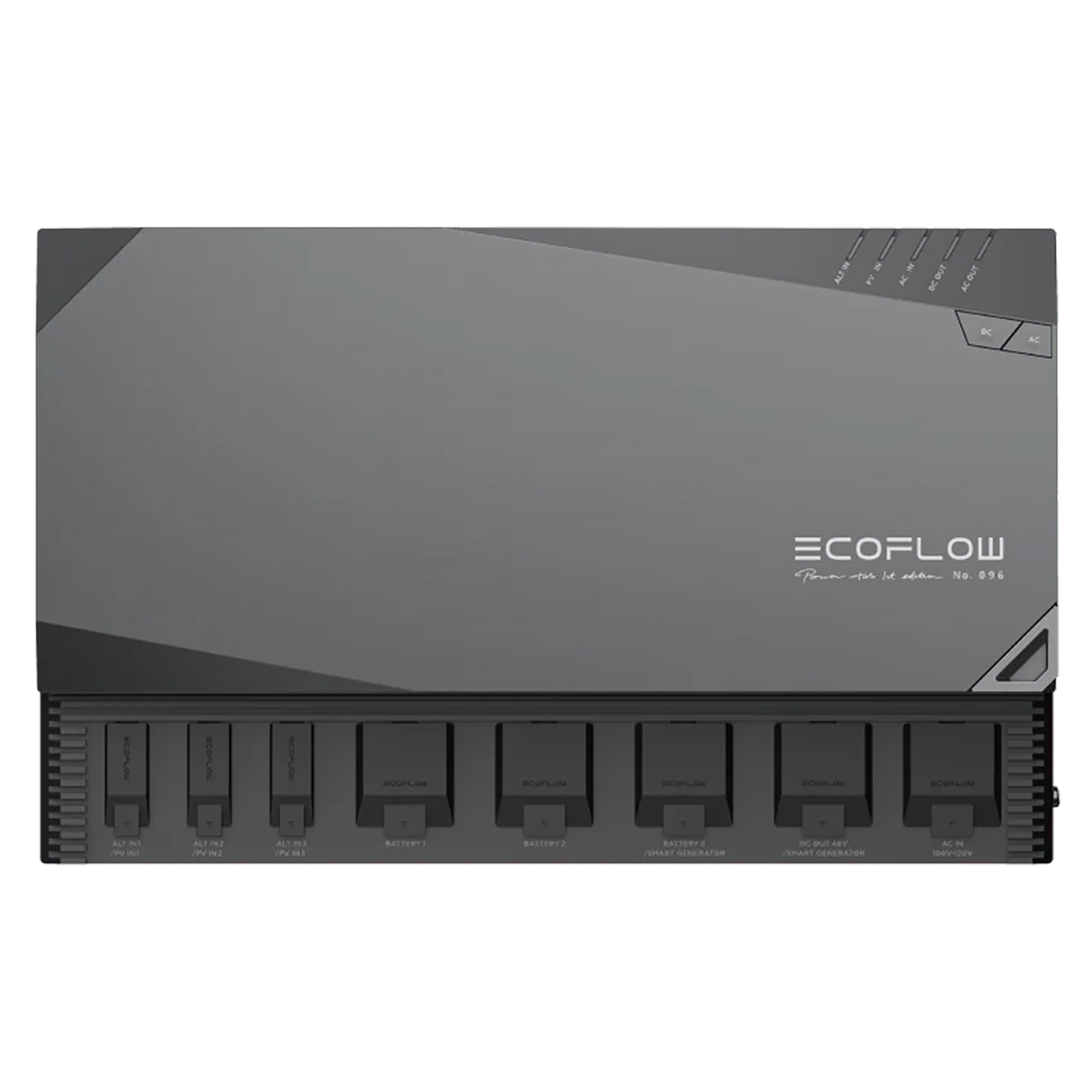

There are a variety of ports, plugs, and sockets on this power hub. Starting on the front, it features three PV In / ALT In ports that allow you to connect solar panels or alternators to charge your batteries. There are also three battery ports that allow you to connect three batteries or a smart generator, a 20A Max AC output port, and an AC input port for connecting to shore or generator power. On the side of the power hub are two EF BUS ports for connecting various EcoFlow peripherals as well as the main 12V/24V DC and AC output ports.
Aside from the various ports, the front of the power hub also features LED indicators and a main power button that allows you to power the system off or on. There are also buttons for AC and DC output, which allow you to disable DC/AC output when pressed.
Details:
- Designed for RVs, camper vans, and off-grid living
- 48v battery compatibility
- Plug and play
- Multiple energy inputs
- Reliable high-powered output
- Capable of running essential appliances and heavy-duty electrical loads
- Connect up to 3 stackable batteries
Includes:
- 5kVA Power Hub x 1
- 5kVA Power Hub AC Charge Cable (14.9’) x 1
- 5kVA Power Hub Alternator Charge Cable (19.8’) x 1
- 5kVA Power Hub DC Main Out Cable 3 AWG (14.9’) x1
- 5kVA Power Hub AC Main Out Cable 6 AWG (14.9’) x 1
- 5kVA Power Hub Solar Charge Cable (19.8’) x 2
- Installation Hardware
General Specs:
- Dimensions: 11.8” H x 18.9” W x 5.9” D
- Communication: Bluetooth, Wifi 2.4G / 5G
- GPS: Supported
- IP Rating: IP20
Output Specs:
- AC Output (Discharge Only): 120V~4000W, 5000VA, 60Hz(Surge 10KVA)
- AC Output (Bypass Mode): 100-120V~50A Max, 50/60Hz
- X-Fusion (Power Assist): 33.3A Max, 5000VA Max
- DC Output (12v/24v): 13.6V⎓100A Max, 1360W Max | 26.4V⎓60A Max, 1584W Max
- 48v DC Output / Smart Generator (48v): 51.2V⎓55A Max
- EF BUS Output (x2): 12V⎓Total 1.2A Max
- Total Output: 8752W Max
Input Specs:
- AC Input (Charge Only): 100-120V~ 4000W Max, 50Hz/60Hz
- AC Input (Bypass Mode): 100-120V~50A Max
- Alternator Input 1 / PV Input 1: 13–60V⎓100A Max, 4000W Max
- Alternator / PV Input ⅔: 13–60V⎓30A Max, 1600W Max
- Battery 3 / Smart Generator: 40-57.6V⎓100A Max
- 48v DC Output / Smart Generator (48v): 40-57.6V⎓70A Max
Battery Port Specs:
- Charge: 40-57.6V⎓100A Max per port, total 270A Max
- Discharge: 40-57.6V⎓100A Max per port, total 181A Max
Operating Specs:
- Operating Temperature: -25°C to 60°C (-13°F to 140°F), derating>40°C (104°F)
- Discharging Temperature: -25°C to 60°C (-13°F to 140°F), derating>40°C (104°F)
- Storage Temperature: -25°C to 70°C (-13F to 158°F)
- Operating Humidity: 0%-95% RH (non-condensing)
- Altitude: <2,000 m (6,562ft)
However, you don’t need to use the buttons in order to control and manage your power. The EcoFlow Power Hub is compatible with Bluetooth and 2.4G or 5G wifi communication. This allows you to easily monitor and control the power hub and its settings straight from your phone when using the EcoFlow app, which is free to download. To get you started, the power hub also comes with an AC charging cable, an alternator charging cable, a DC main out cable, an AC main out cable, and two solar charging cables.
Equipping the Gen 2 EcoFlow 5kVA Power Hub on your off-grid power system means being able to make the most out of every watt and amp. Use our website to order yours today, or explore our complete EcoFlow Power Kits!
