Rich Solar

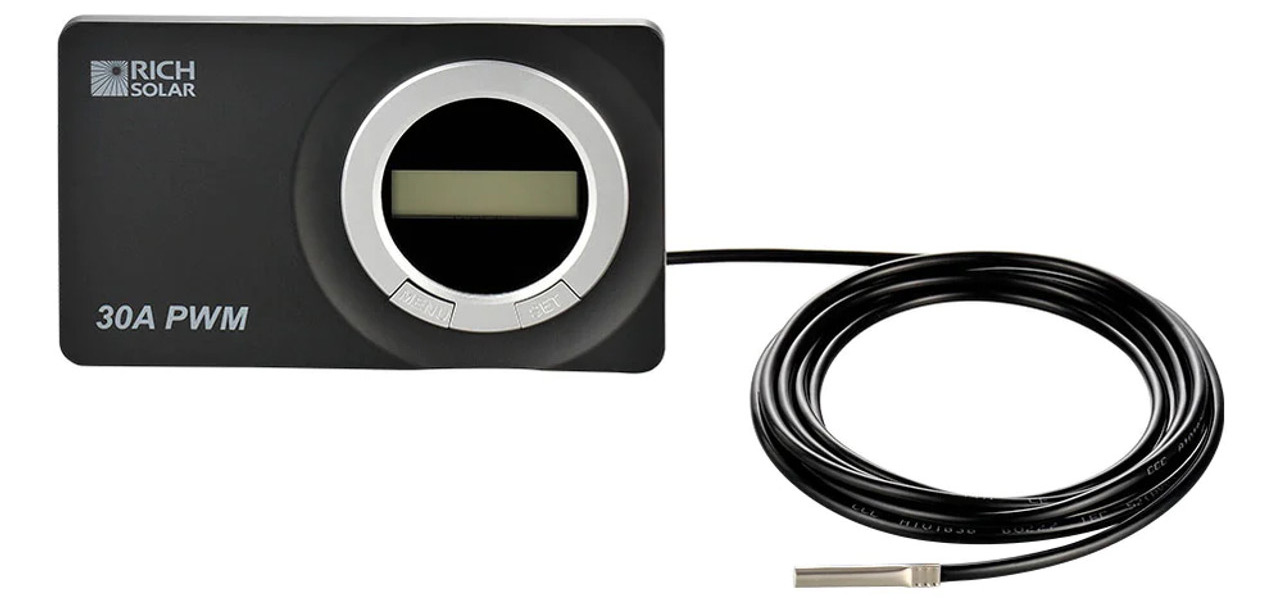

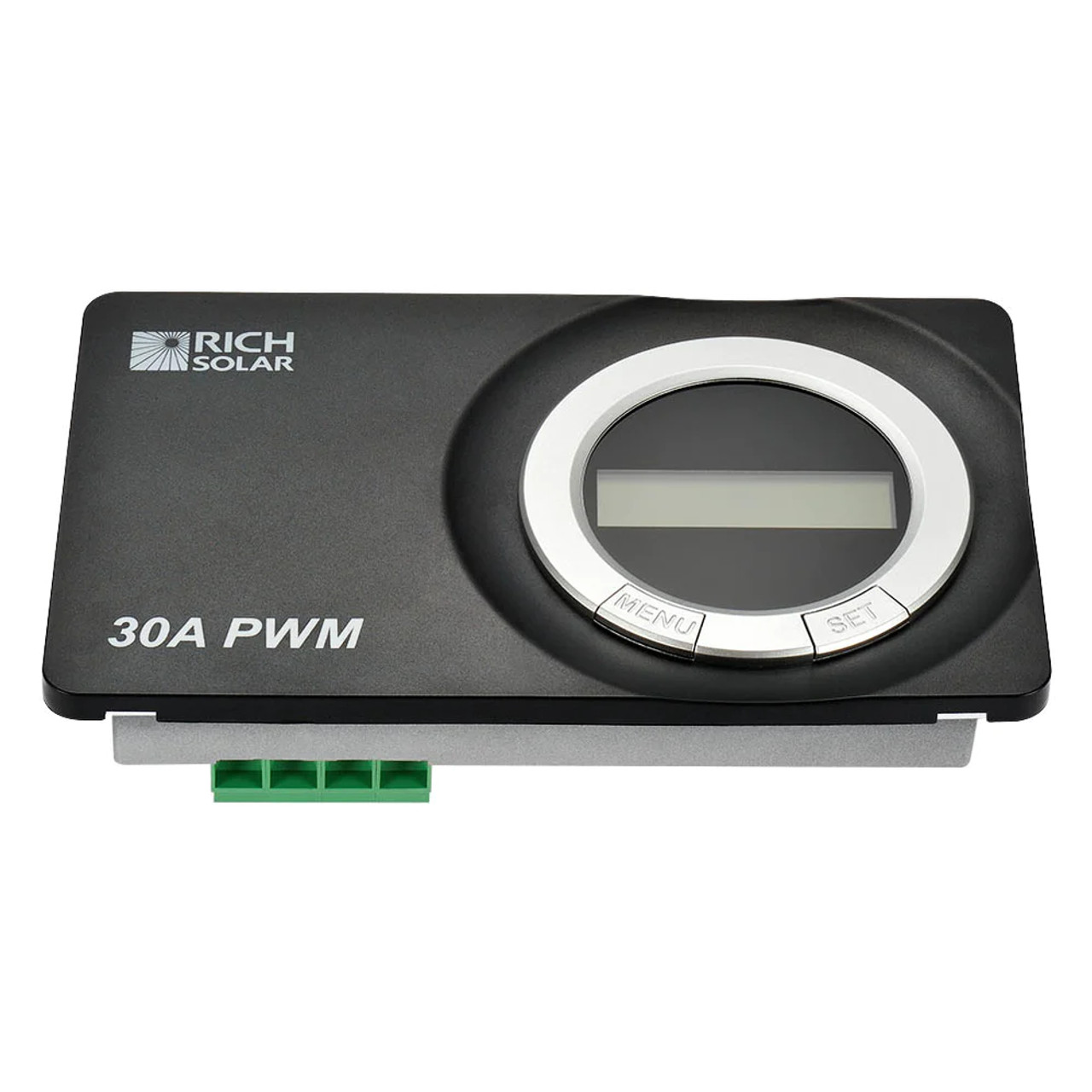

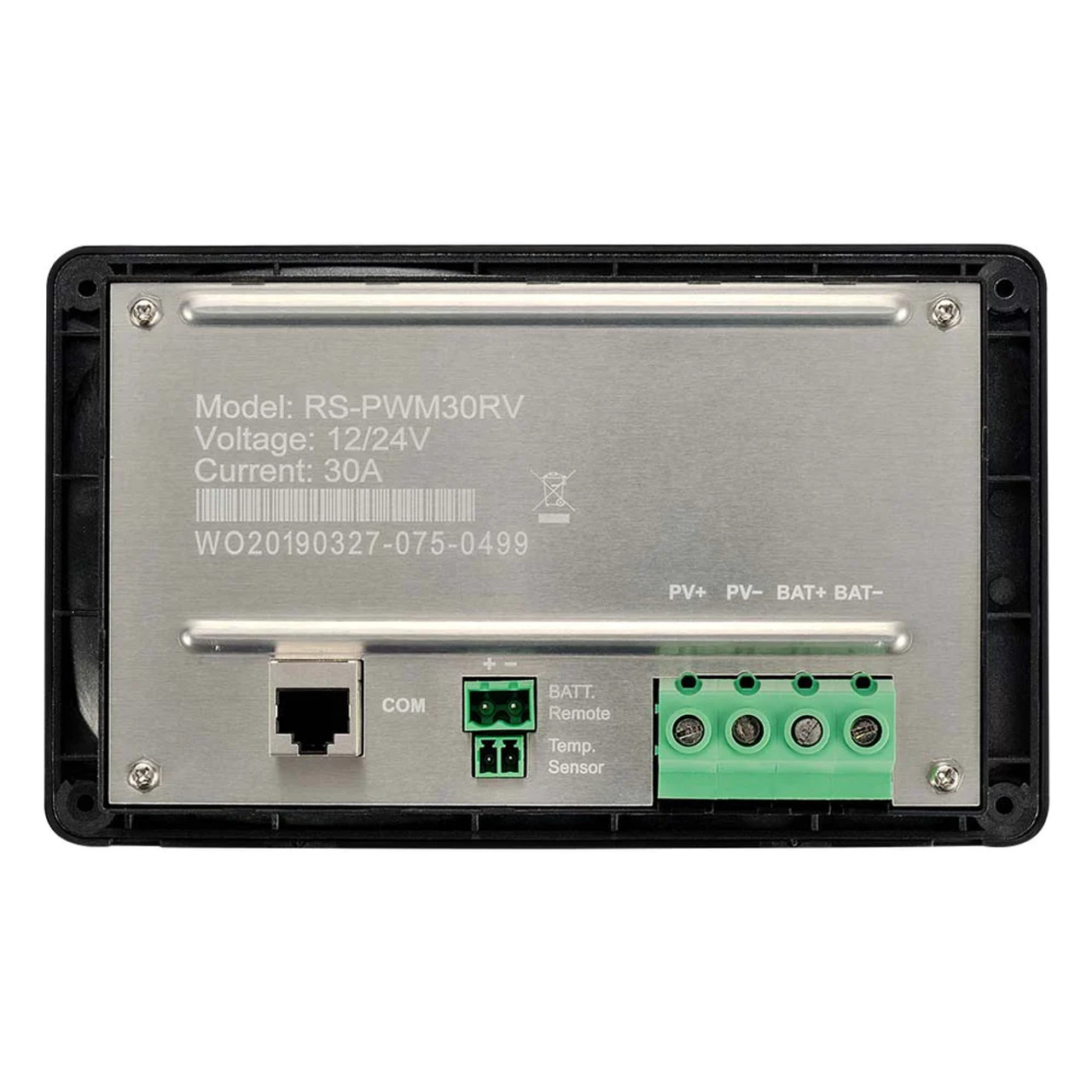

Rich Solar RV 30 Amp Solar Charge Controller Flush Mount
- SKU:
- RS-PWM30RV
Description
Do you want to save some space with your RVs solar power system without sacrificing its efficiency? RecPro has the solution with our Flush Mount 30-Amp Solar Charge Controller!
This 30-amp charge controller is built with a flush-mount embedded installation design, making it a perfect option for RVs, campers, and trailers whose wiring does not allow for normal compartment installations. This flush-mount solar charge controller is built with high-quality components that boast remarkably low failure rates, which helps ensure that you receive optimal performance. The solar charger features 3-stage intelligent PWM charging with Bulk, Boost/Equalize, and Float modes, all while being compatible with sealed, flooded, and gel battery types with built-in battery temperature compensation.
On this solar charger, you will find a digital LCD display, which provides real-time energy statistics and a wealth of information regarding operational parameters and faults, with multiple communication peripherals to use. You can set and monitor these parameters using computer software or the app, making it easy to tailor this charge controller to the needs of your solar setup. This flush-mount solar charge controller not only helps you easily and efficiently charge your solar batteries, but it also provides your solar power system with a little extra security as well, thanks to its expansive range of electrical system protections.
It doesn’t take much to upgrade the solar power system on your RV, camper, or trailer. With this Flush Mount 30-Amp Solar Charge Controller, it can be done with ease! Don’t wait, use our website or chat with our Customer Care Team to order yours today!
Details:
- Flush-mount embedded installation design
- High-quality components with low failure rates ensure exceptional performance
- 3-Stage intelligent PWM charging
- Bulk
- Boost/Equalize
- Float
- Compatible with Sealed, Flooded, and Gel battery types
- Provides real-time energy statistics feature
- Battery temperature compensation
- Digital LCD display provides informational display of operational parameters and faults
- Voltage drop and temperature compensation design
- Multiple communication peripherals
- Rated charging current at working temp without de-rating
- Expansive electrical system protections
- Set and monitor parameters via the PC software or app
- Nominal System Voltage: 12/24V DC or Auto
- Battery Input Voltage Range: 8V~32V
- Rated Charge Current: 30A
- Max. PV Short Circuit Current: 30A
- Max. PV Open Circuit Voltage: 50V
- Battery Type: Sealed(default)/Gel/Flooded
- Self-consumption: ≤ 4.2mA/12V; ≤ 2.6mA/24V
- Temperature Compensation Coefficient: -3mV/°C/2V (Default)
- Charge Circuit Voltage Drop: 0.21V
- Storage Temperature Range: -30°C~+80°C
- Working Environment Temperature: -20°C~+55°C(100% input and output)
- Relative Humidity: ≤95%, N.C.
- Enclosure: IP30
- Grounding: Common negative
- Altitude: 5000m
- Pollution Degree: PD2
- Dimension(L×W×H): 178.5×105.5×48.3mm
- Mounting Dimension: 166.5×93.5mm
- Mounting Hole Size: Φ5mm
- Terminal: 16mm2/6AWG
- Recommended Cable: 6mm2/10AWG
- Net Weight: 0.68lbs
